30% Increase in Welding Qualification Rate for Large-Scale Steel Structures: Coordination Strategy Between Gantry Synchronization and Welding Processes

The Challenge of Scale in Steel Fabrication

Fabricating large-scale steel structures—such as those used in shipbuilding, massive bridge construction, and heavy industrial infrastructure—presents a unique set of technical hurdles. As structural dimensions increase, the risk of mechanical vibration, positioning drift, and inconsistent weld penetration grows exponentially. Traditionally, the gap between gantry movement control and the actual welding process led to frequent rework, as minor timing discrepancies between the travel speed and the specific arc parameters often resulted in severe metallurgical defects. For structural fabricators managing heavy-duty projects, the goal is straightforward: transition from error-prone manual oversight to automated precision that ensures a consistent, high-quality weld from the very first inch to the last. Achieving this level of reliability requires a fundamental rethinking of how machines communicate and execute complex commands across vast steel surfaces.

The Technological Foundation: PLC-Integrated Multiaxis Drive

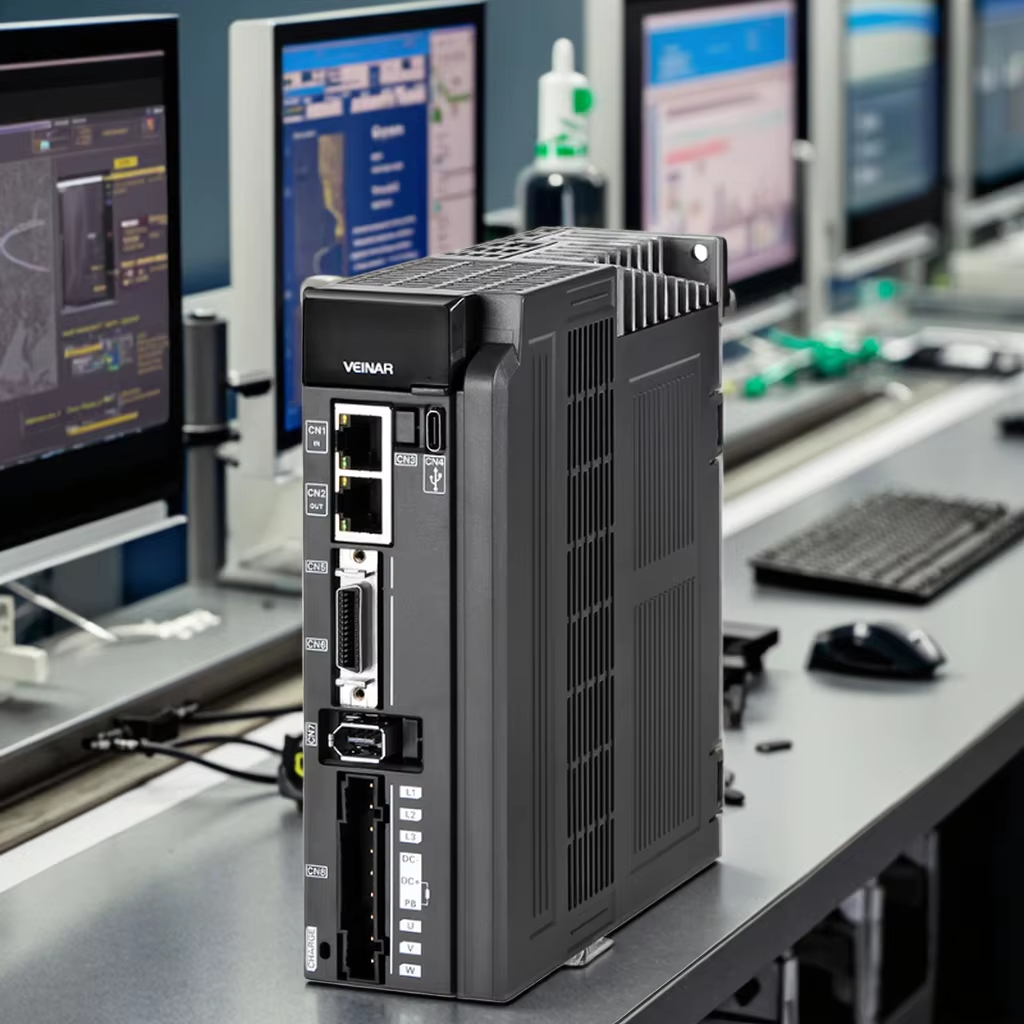

The shift toward higher qualification rates begins with the underlying architecture of the control system. A PLC-integrated multiaxis drive system represents a massive fundamental upgrade over legacy setups where disparate motion controllers and welding power sources communicated with high, unpredictable latency. By consolidating logic, trajectory planning, and complex drive command processing within a single unified platform, the system achieves sub-millisecond response times that were previously impossible. This deep integration effectively eliminates the traditional communication bottleneck, allowing the PLC to directly modulate drive speeds and welding current simultaneously without lag. When the motion controller and the welding power source operate on the same data bus, the result is a seamless, real-time command loop that maintains iron-clad stability even during the most complex, multi-directional movements required for massive steel structures.

Achieving Perfect Synergy: Synchronization and Welding Processes

The primary secret to achieving consistent, high-quality results in large-scale welding is the tight, unwavering synchronization between the gantry’s specific motion profile and the dynamic state of the welding arc. As a massive gantry moves across a giant steel panel, even microscopic fluctuations in rail alignment or mechanical friction can immediately impact the final weld quality. With modern integrated drive technology, the system constantly monitors position feedback from the gantry’s motors with extreme precision. This data is fed back to the PLC, which makes instantaneous, micro-adjustments to the welding wire-feed speed and voltage. By ensuring that the arc always matches the instantaneous travel speed to the smallest degree, the system prevents undercutting, excessive porosity, and cold-lapping—the common, costly defects that typically trigger a failed weld inspection. This level of synergy turns complex welding into a repeatable, scientific process.

Tangible Results: Analyzing the 30% Qualification Rate Increase

The leap to a 30% increase in welding qualification rates is not merely a statistical improvement on paper; it represents a fundamental, transformative change in the daily manufacturing workflow. By automating the coordination of motion and arc parameters, fabricators can virtually eliminate the "first-pass" failures that plague large-scale projects and stall production schedules. Increased qualification rates mean that massive components move directly from the assembly line to the next stage of production, rather than waiting hours or days for labor-intensive inspection, heavy grinding, and secondary repair passes. This transition significantly reduces the thermal stress caused by excessive re-welding, which further preserves the structural integrity of the steel, making it much easier to meet the increasingly stringent industry standards required for heavy-duty, mission-critical applications.

Strategic Advantages: Efficiency and Quality at Scale

From a pure business perspective, investing in an integrated control architecture is a strategic decision that drives long-term profitability and market competitiveness. While the initial integration requires significant technical rigor, the return on investment is realized through drastically reduced material waste, lower labor costs associated with manual rework, and much faster overall project throughput. When systems are perfectly synchronized, the machines spend more time welding and less time idling for repairs or adjustments. This reliability completely transforms the factory floor, allowing manufacturers to bid on far more complex, large-scale projects with the absolute confidence that their process capability can meet even the most demanding international engineering specifications. Efficiency at scale is the key to surviving and thriving in a crowded global market.

Partnering for Industrial Excellence

Highsense is dedicated to bridging the critical gap between cutting-edge automation technology and the real-world needs of the industrial fabrication sector. Highsense understands that in the world of large-scale steel production, the quality of the control architecture determines the quality of the final structure. Through a robust global supply chain and specialized industrial integration services, Highsense provides the high-performance hardware and technical expertise necessary to implement PLC-integrated multiaxis drive solutions effectively. By partnering with Highsense, fabricators gain access to the specialized components and expert design support required to upgrade aging production lines for maximum efficiency and superior weld quality. Highsense remains committed to supporting client growth by delivering precision-engineered solutions that ensure structural reliability, operational excellence, and a significant competitive advantage in every weld. Choosing the right partner is the most important step in scaling up production capacity.
