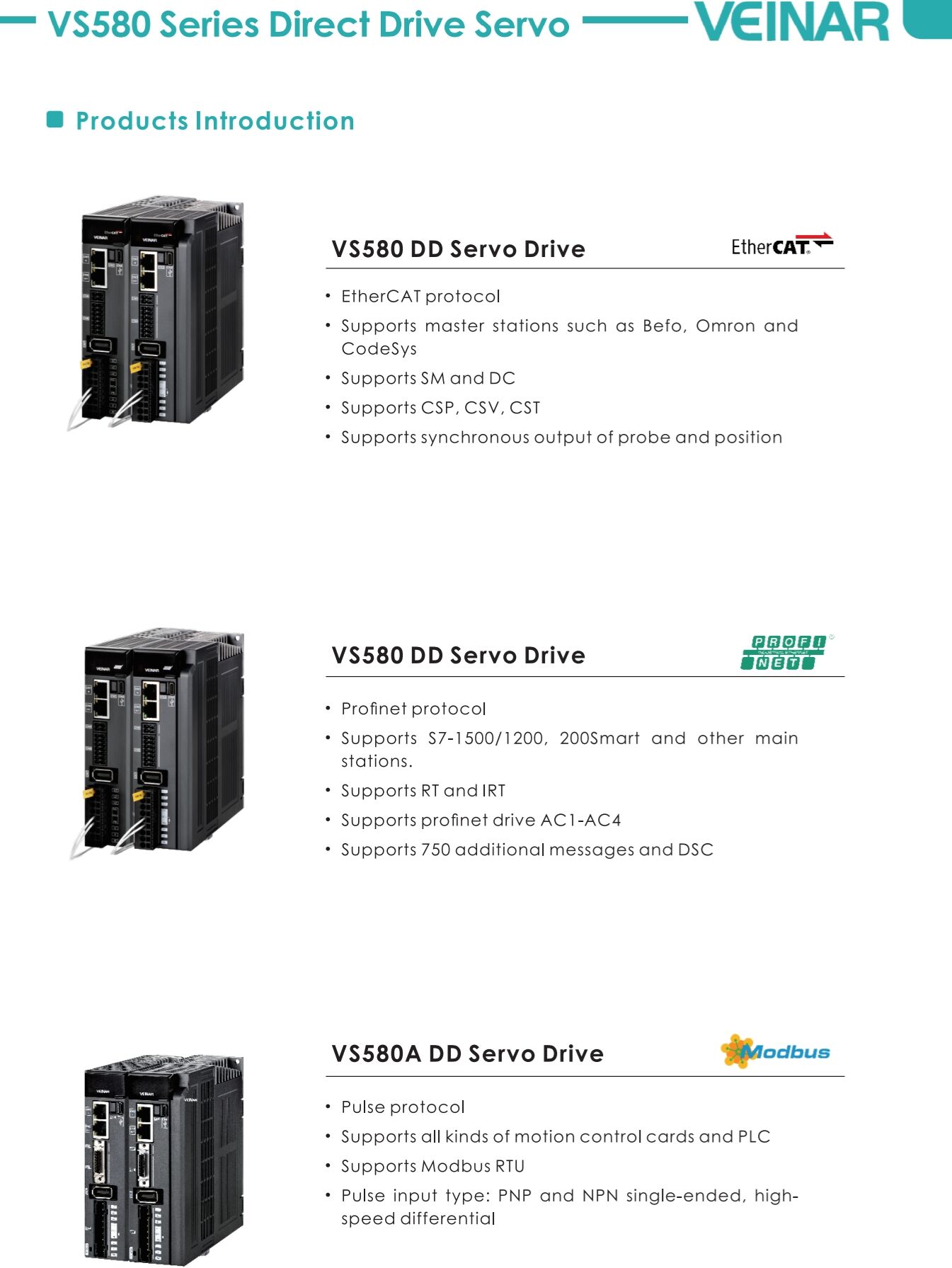

VS580 Series Direct Drive Servo
High speed：
High sampling frequency
High bandwidth
Real-time Ethernet communication
Precision：
Resolution up to 0.lum
Repeat positioning accuracy:up to 0.5um
Precision：
Resolution up to 0.lum
Repeat positioning accuracy:up to 0.5um
- Overview
- Recommended Products

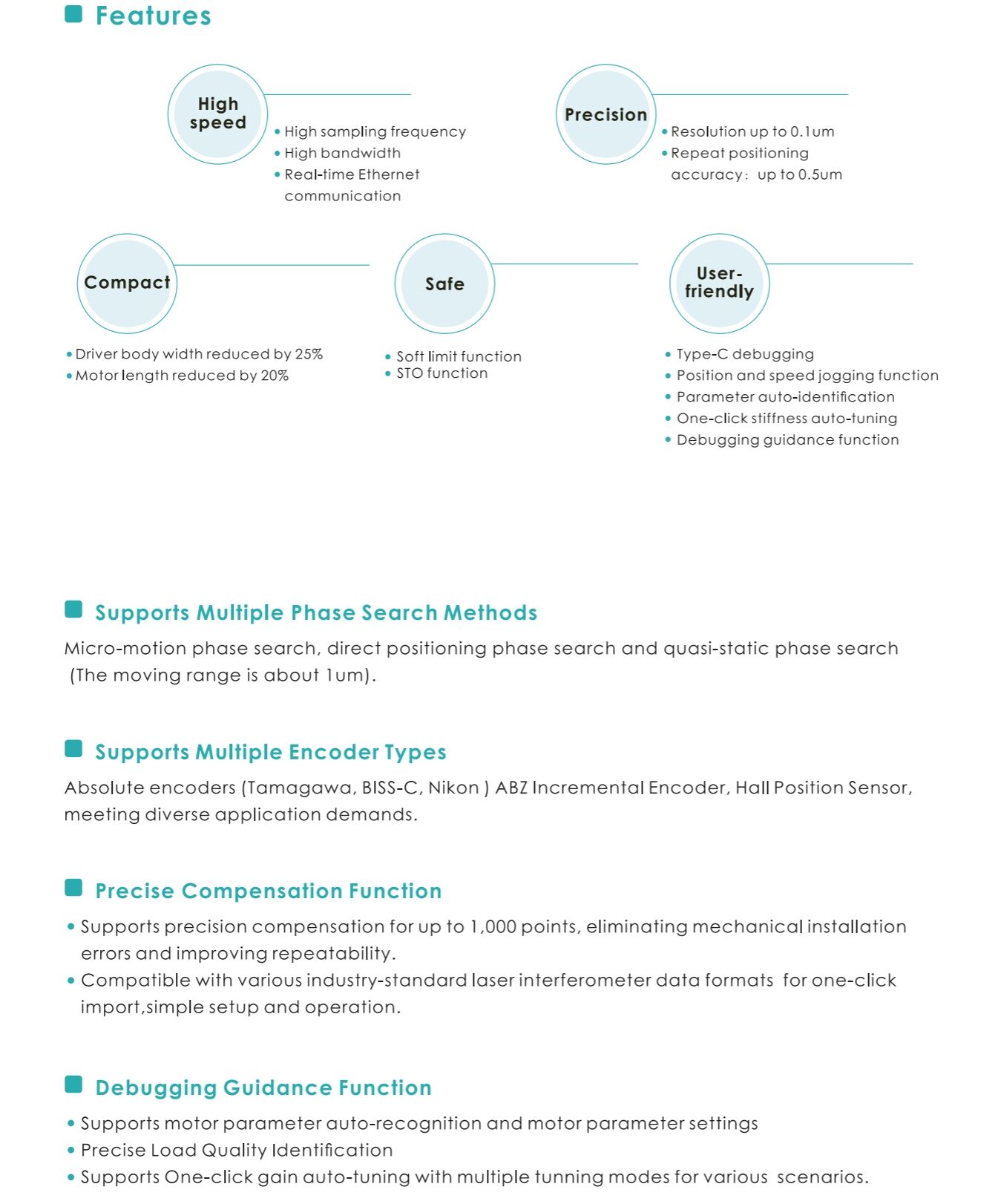

Supports Multiple Phase Search Methods
Micro-motion phase search, direct positioning phase search and quasi-static phase search
(The moving range is about lum).
Supports Multiple Encoder Types
Absolute encoders (Tamagawa, BIss-C, Nikon) ABZ Incremental Encoder, Hall Position Sensor,
meeting diverse application demands.
Precise Compensation Function
● Supports precision compensation for up to l,ooo points, eliminating mechanical installation
errors and improving repeatability.
● Compatible with various industry-standard laser interferometer data formats for one-click
import,simple setup and operation.
Debugging Guidance Function
●Supports motor parameter auto-recognition and motor parameter settings
● Precise Load Quality Identification
● Supports One-click gain auto-tuning with multiple tunning modes for various scenarios.

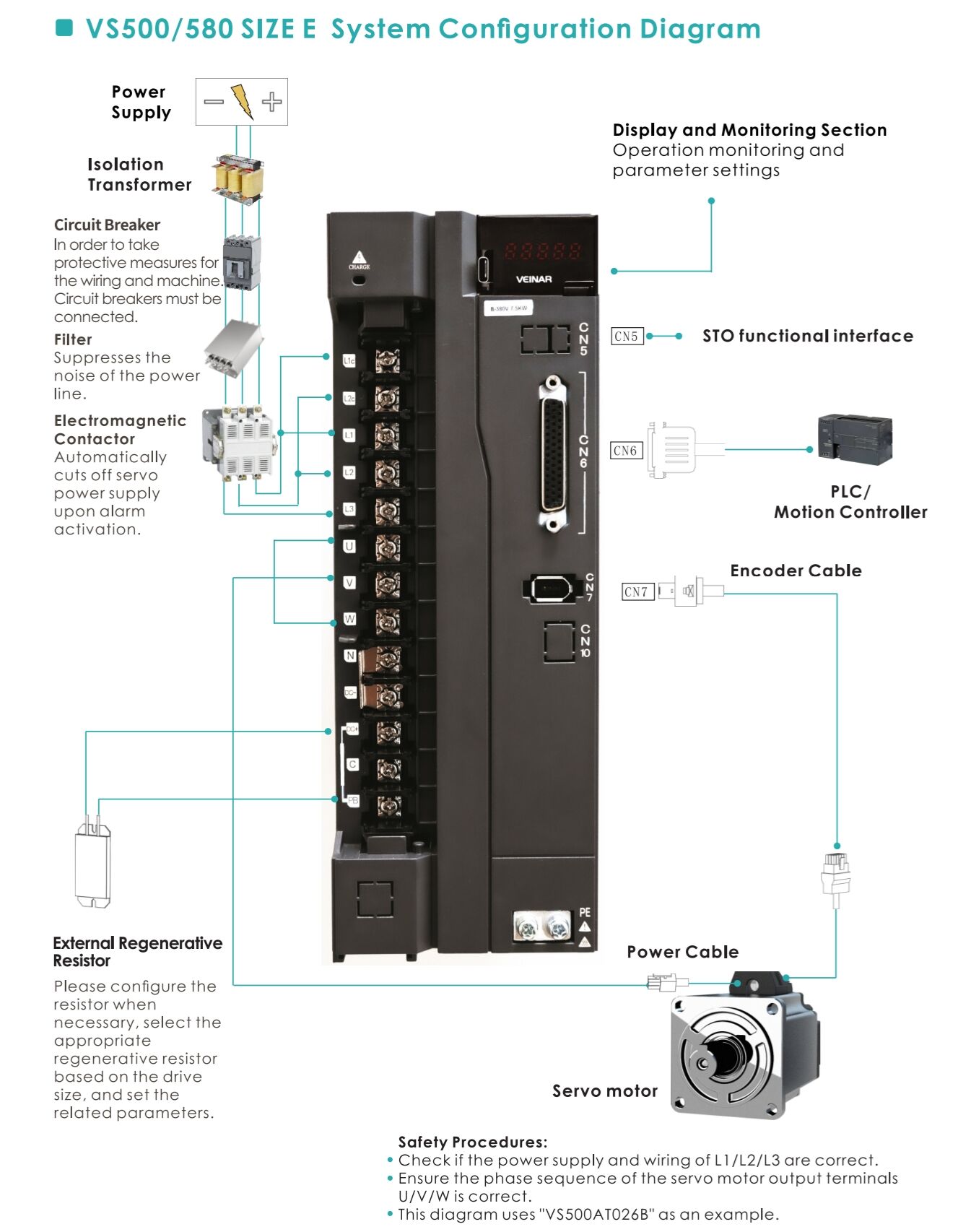

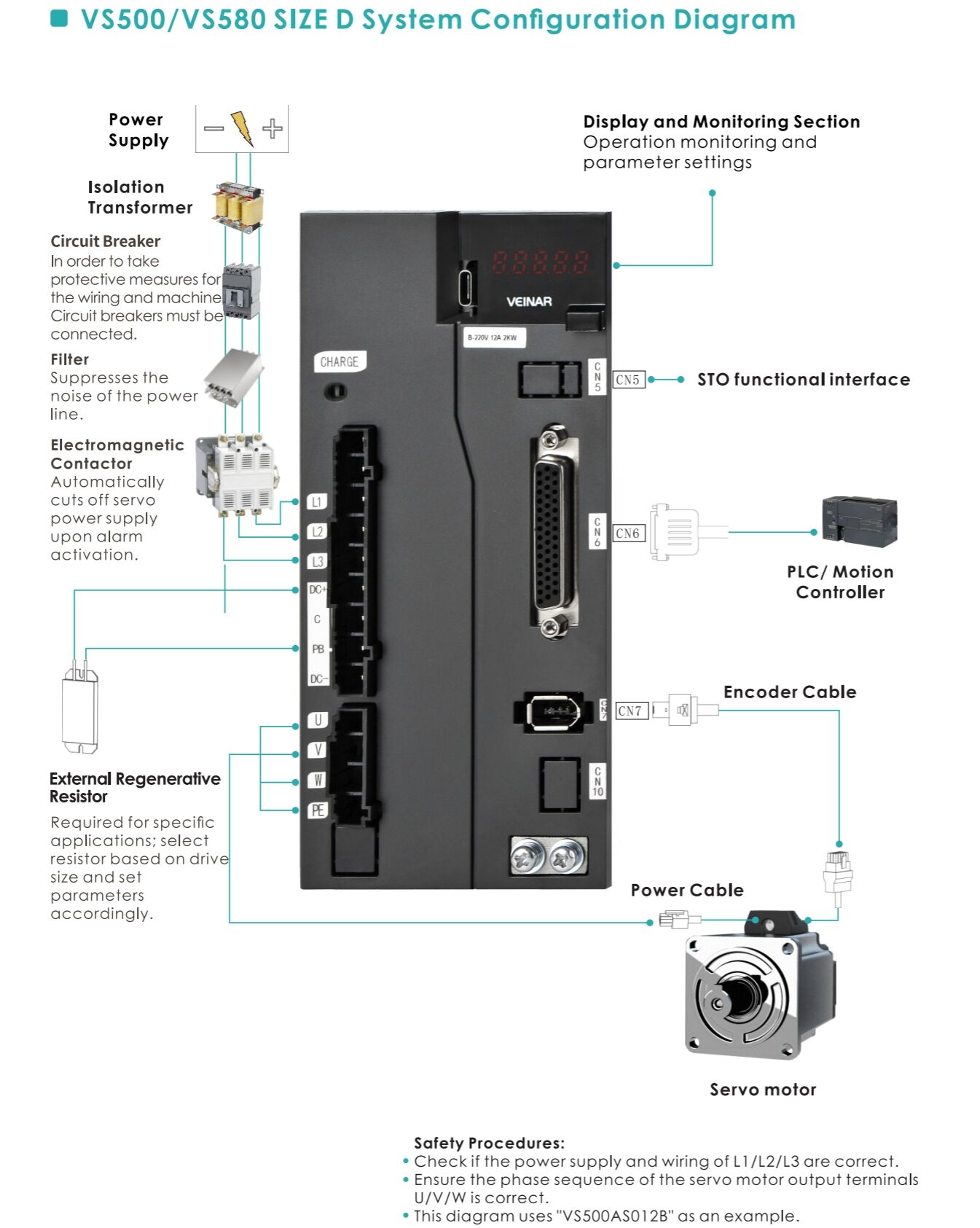

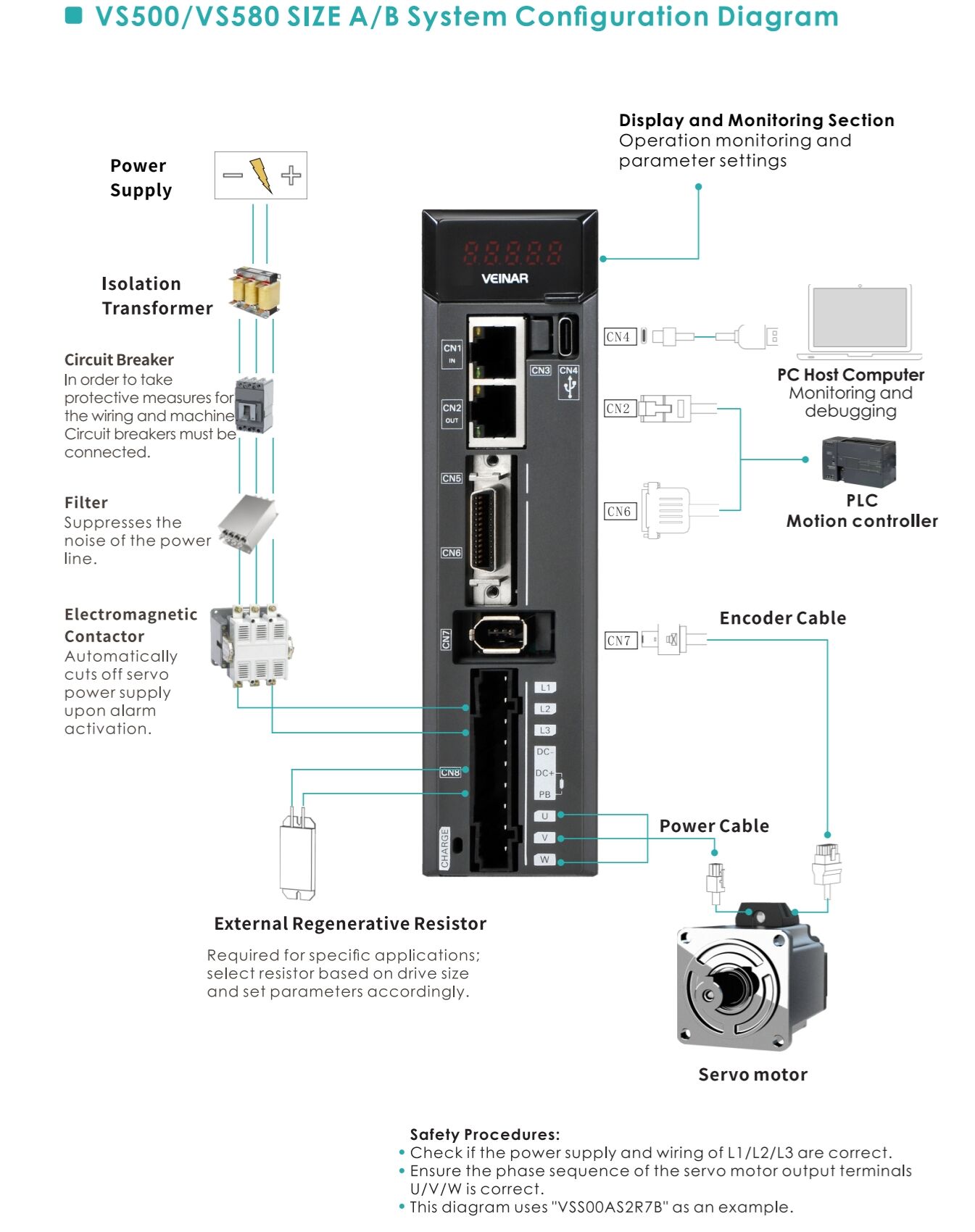

VS580 wiring diagram

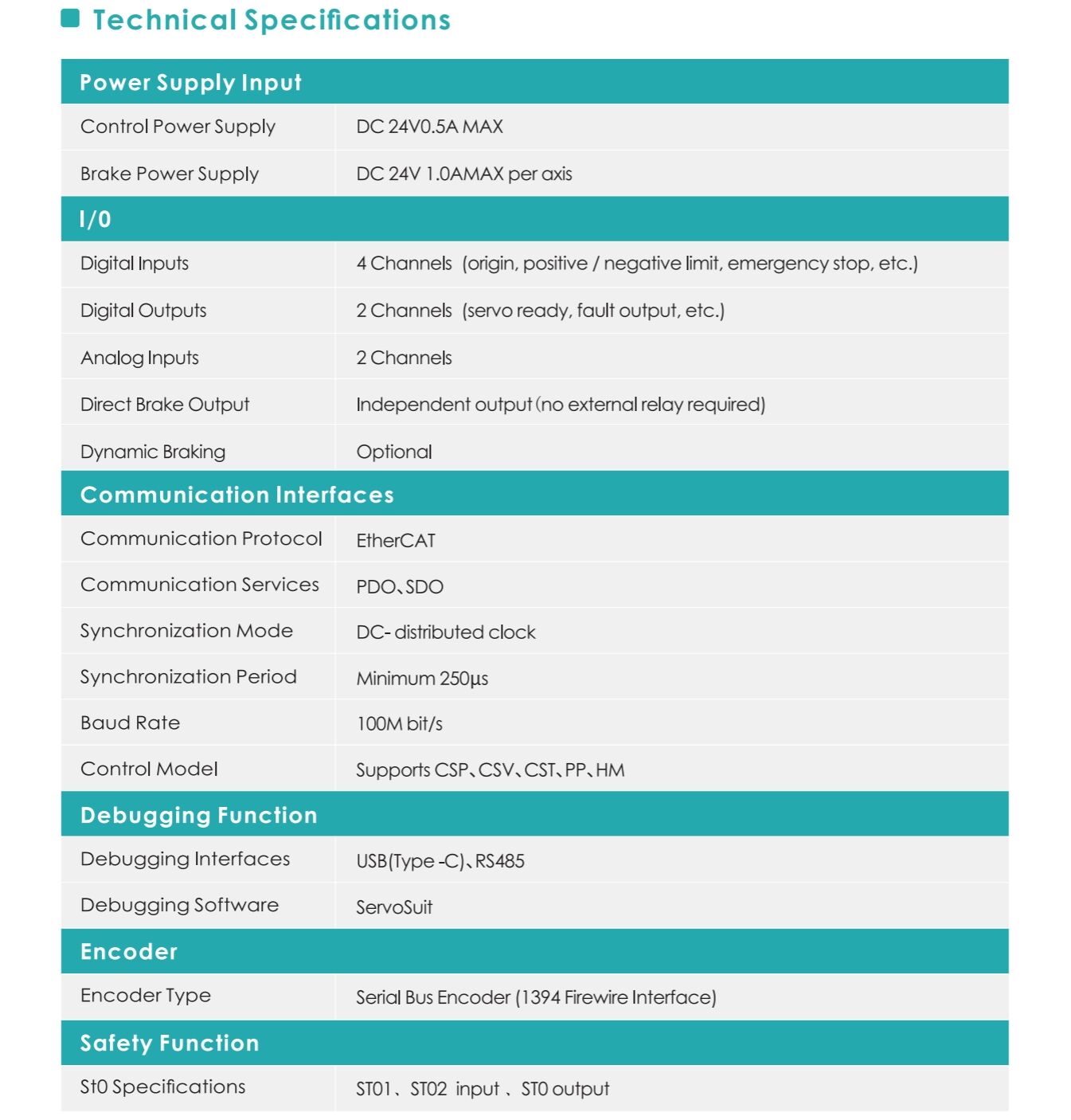

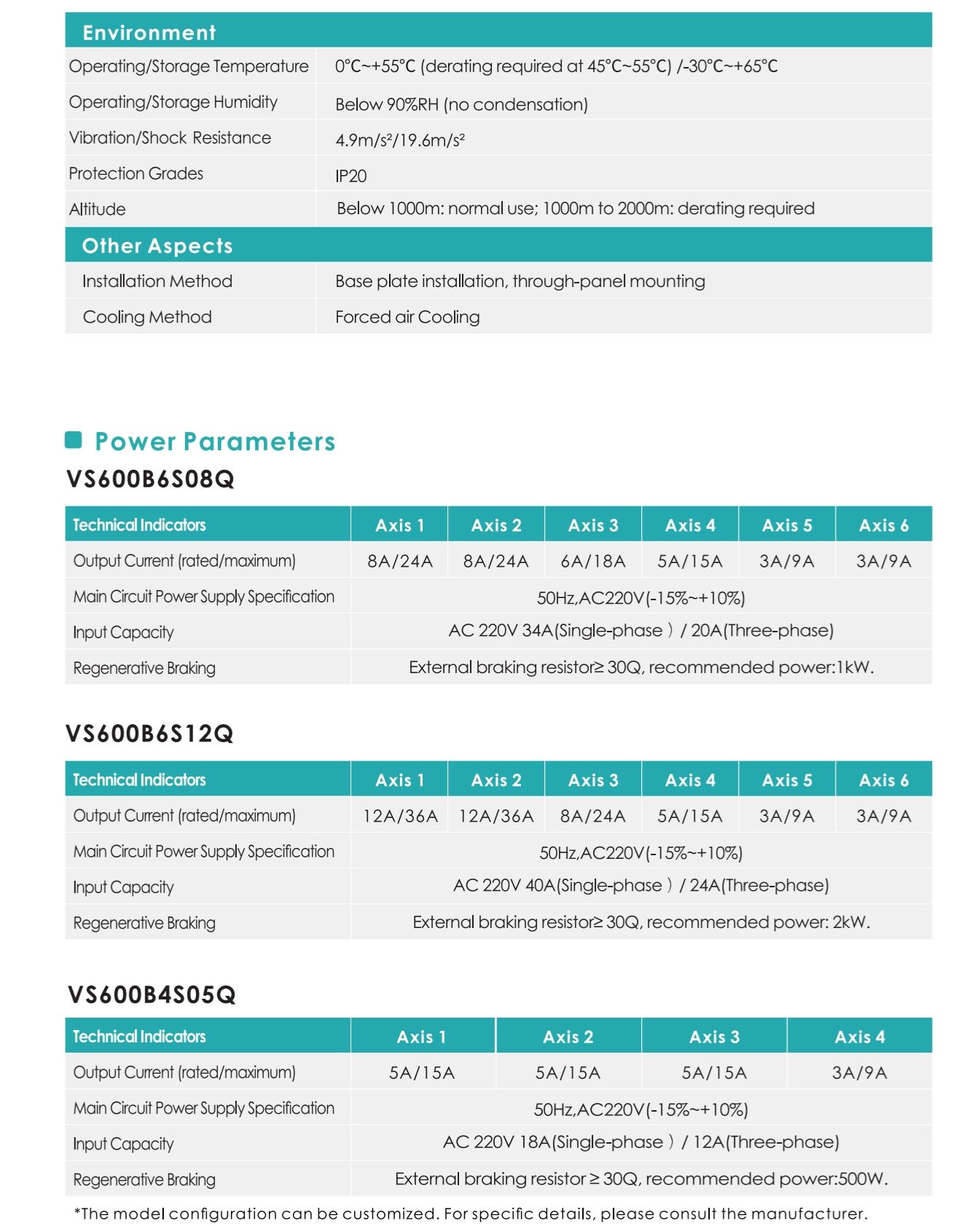

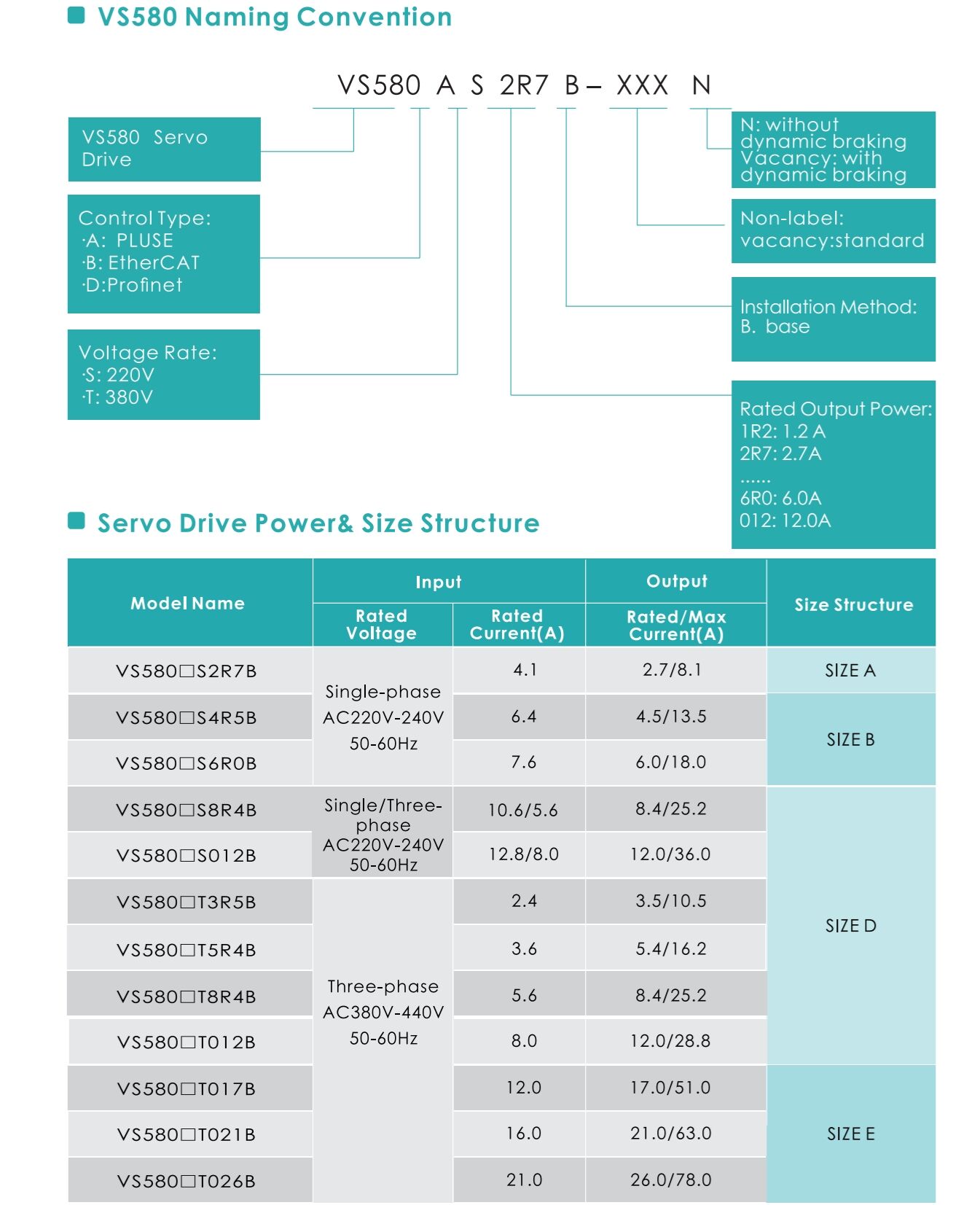

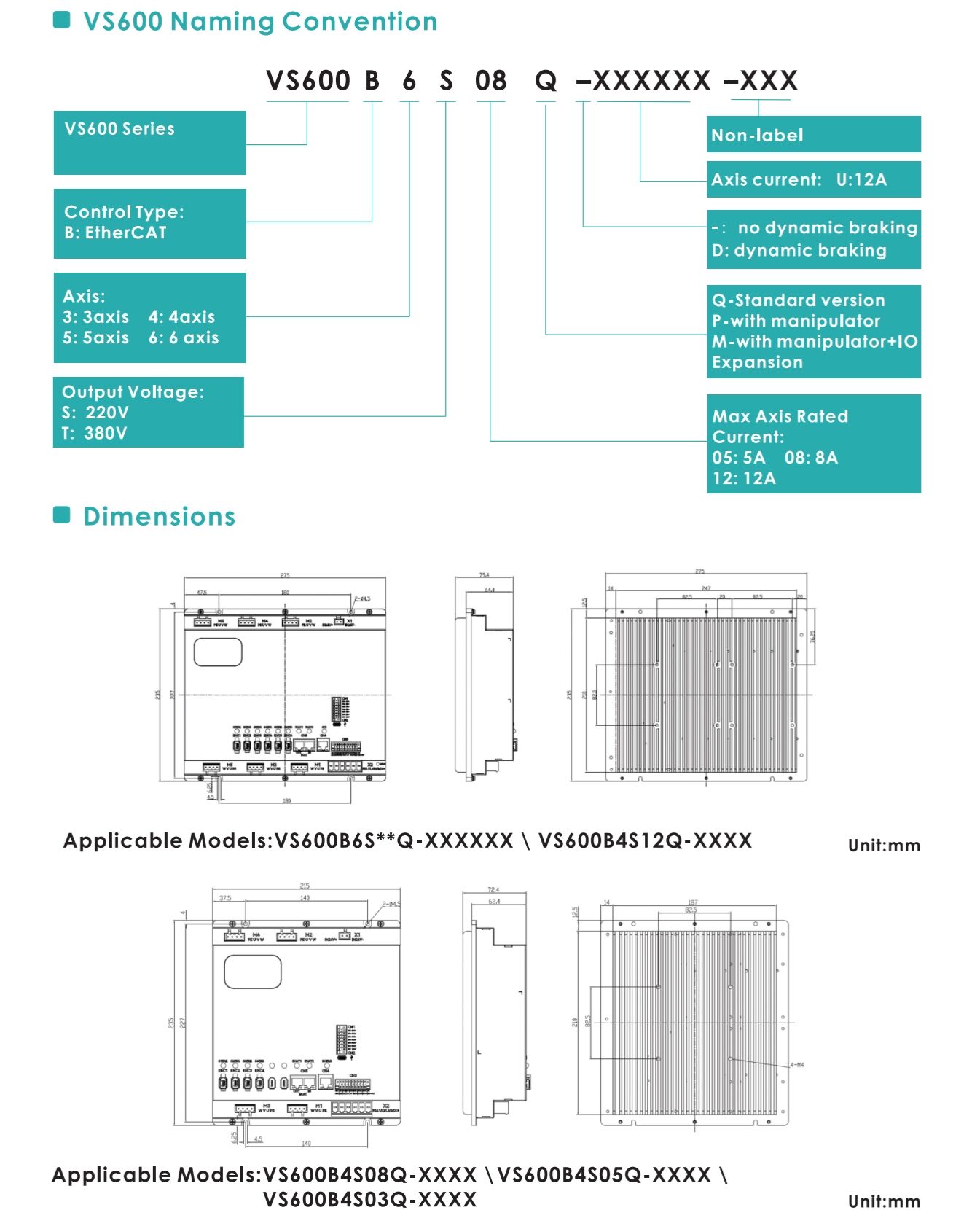

Product Details Description

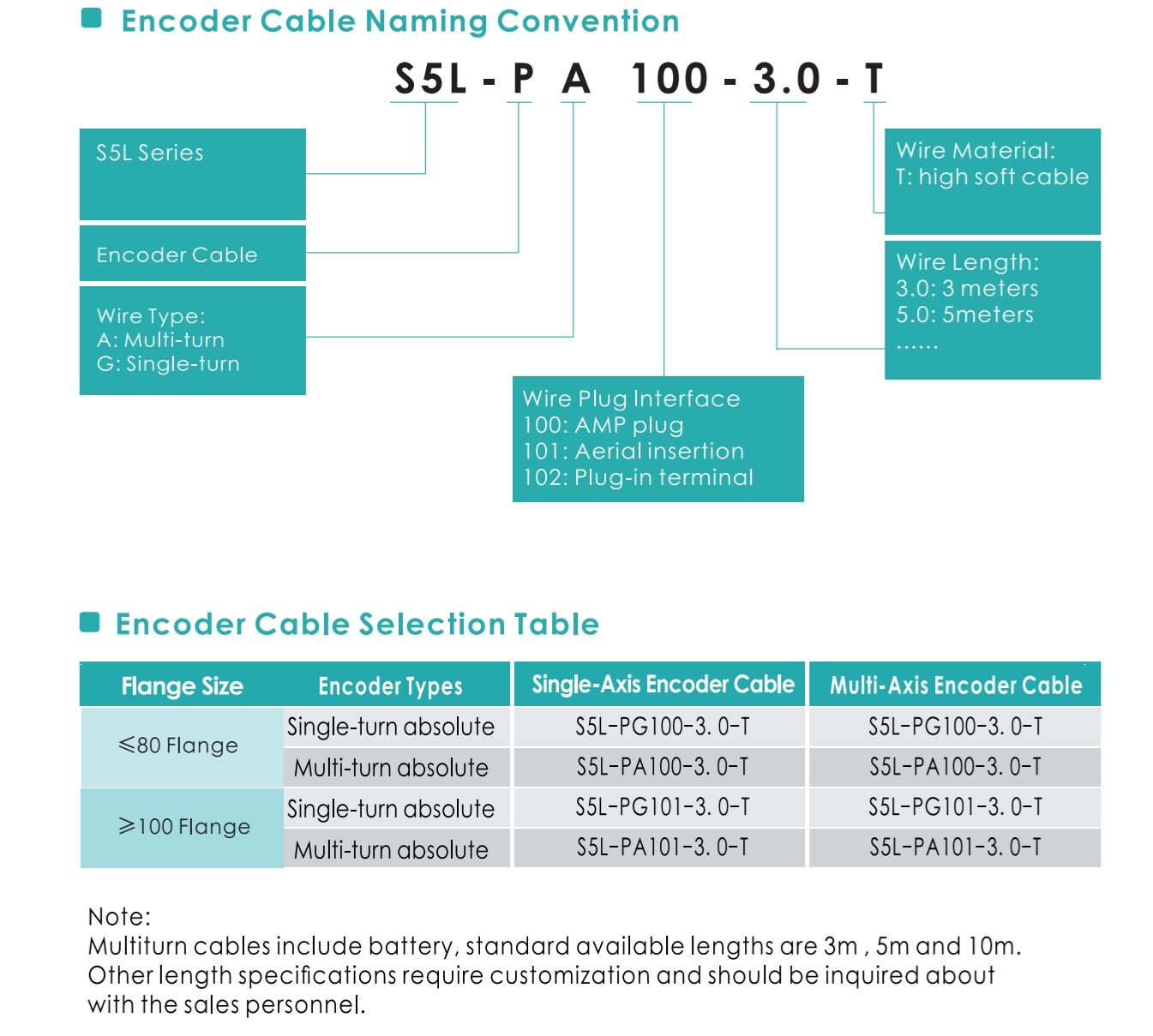

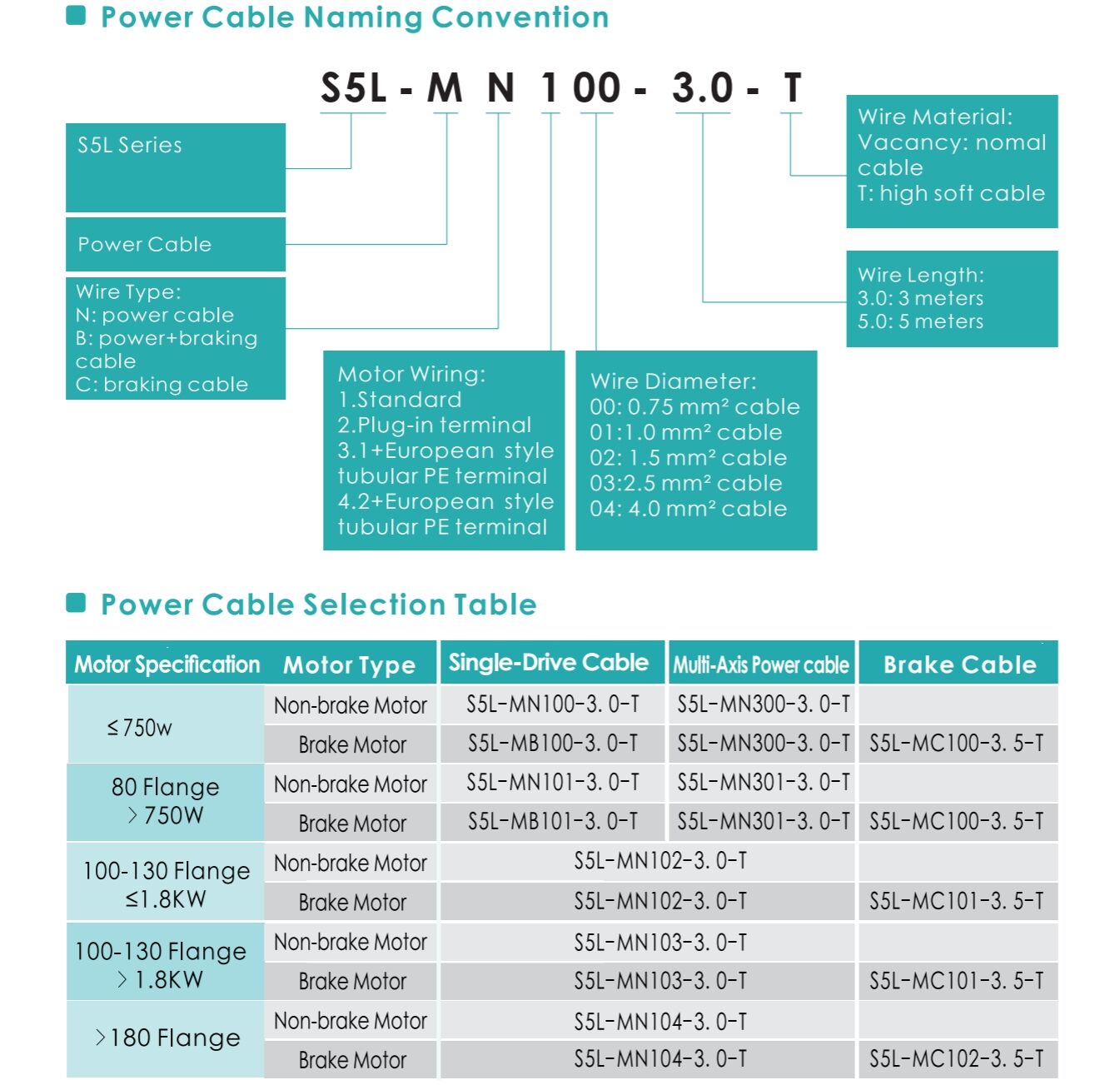

Cable selection diagram
