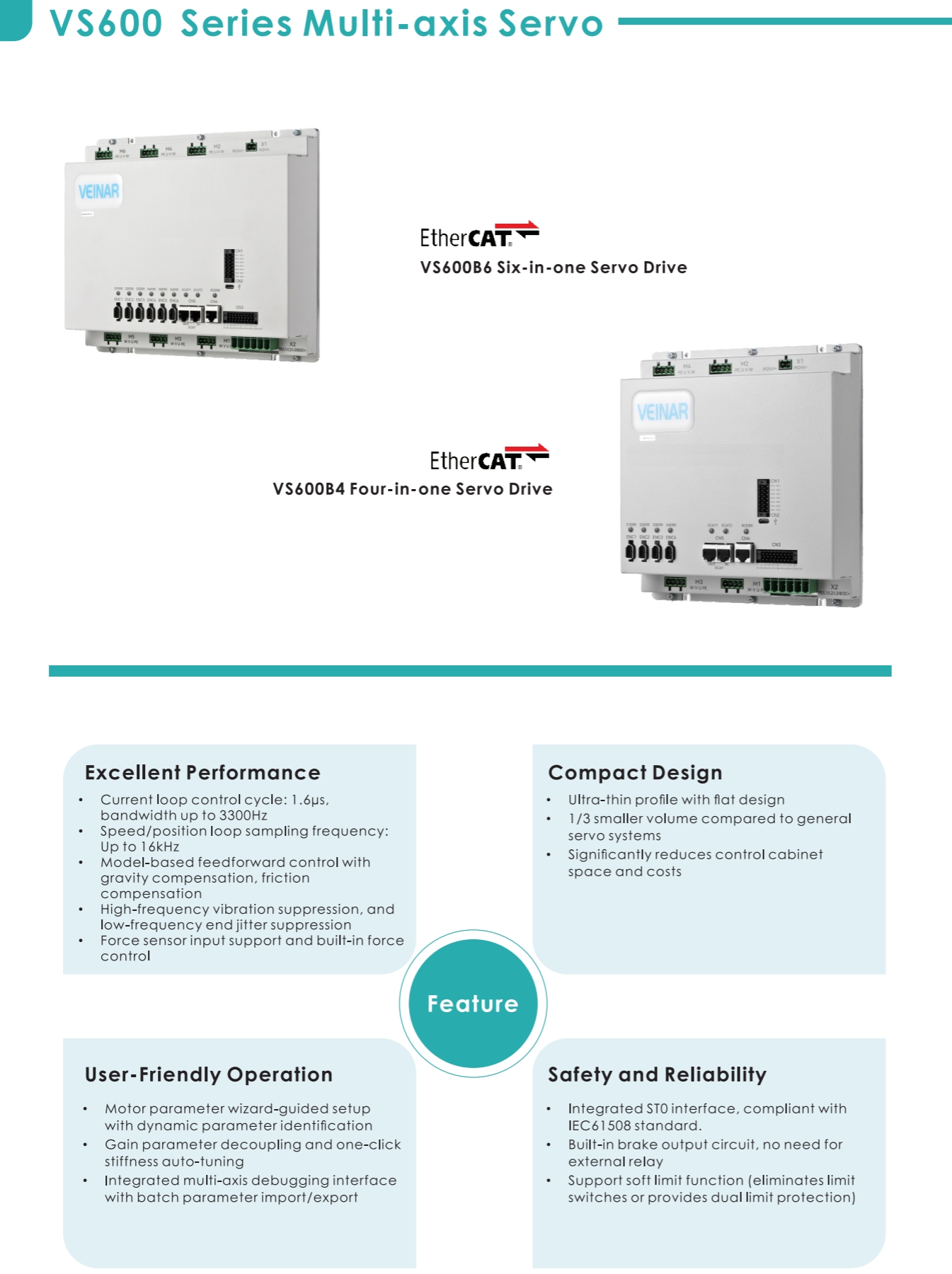

VS600 Series Multi-axis Servo
Excellent Performance
Compact Design
User-Friendly Operation
Safety and Reliability
- Overview
- Recommended Products
Excellent Performance
Current loop control cycle:1.6μs,bandwidth up to 3300Hz
Speed/position loop sampling frequency:Up to 16kHz
Model-based feedforward control with gravity compensation, friction compensation
High-frequency vibration suppression, and low-frequency end jitter suppression
Force sensor input support and built-in force control
Motor parameter wizard-guided setup with dynamic parameter identification
Gain parameter decoupling and one-click stiffness auto-tuning
Integrated multi-axis debugging interface with batch parameter import/export
Safety and Reliability
Integrated STO interface, compliant with IEC61508 standard.
Built-in brake output circuit, no need for external relay
Support soft limit function (eliminates limit switches or provides dual limit protection)
Compact Design
Ultra-thin profile with flat design
1/3 smaller volume compared to general servo systems
Significantly reduces control cabinet space and costs
User-Friendly OperationMotor parameter wizard-guided setup with dynamic parameter identification
Gain parameter decoupling and one-click stiffness auto-tuning
Integrated multi-axis debugging interface with batch parameter import/export
Safety and Reliability
Integrated STO interface, compliant with IEC61508 standard.
Built-in brake output circuit, no need for external relay
Support soft limit function (eliminates limit switches or provides dual limit protection)

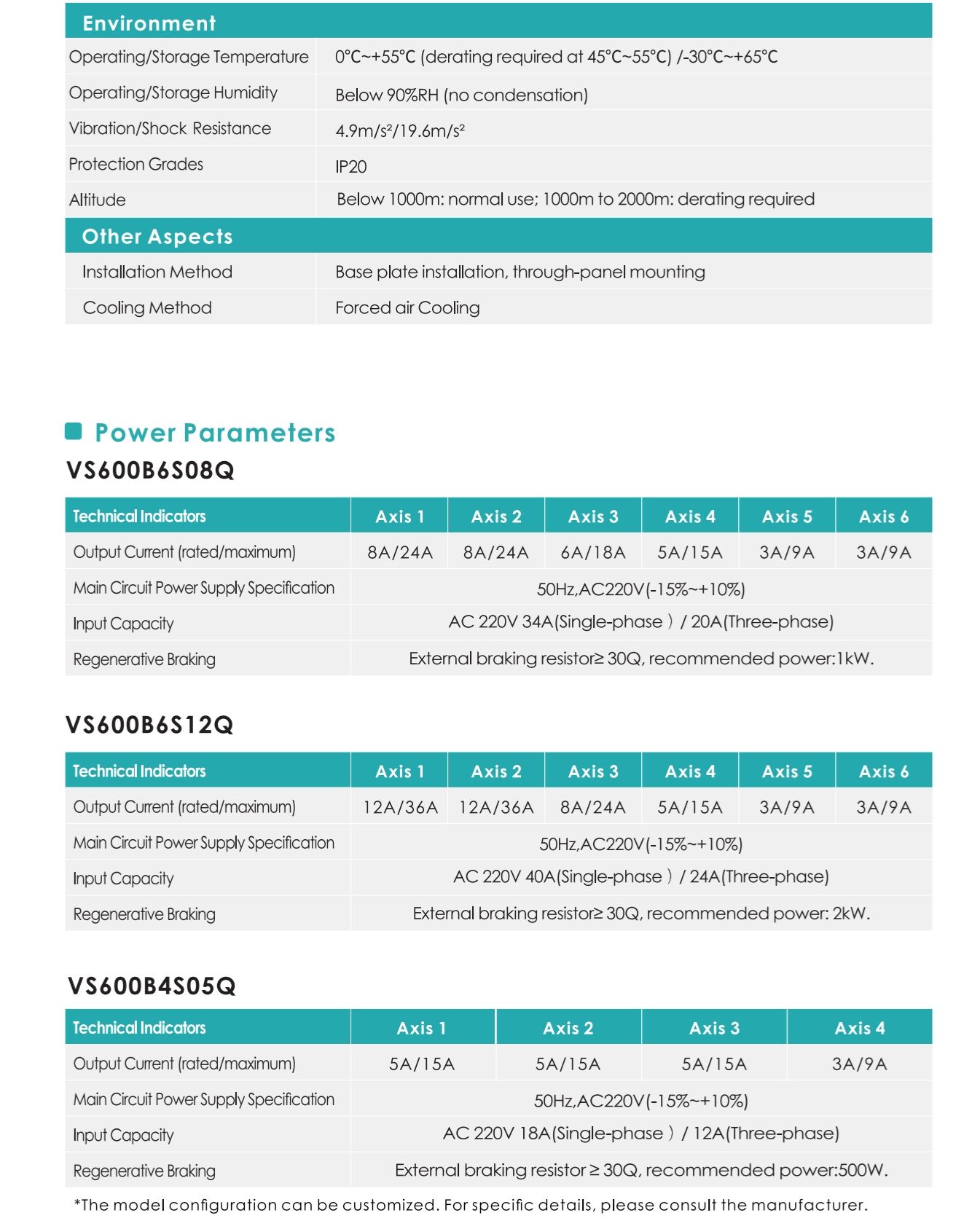

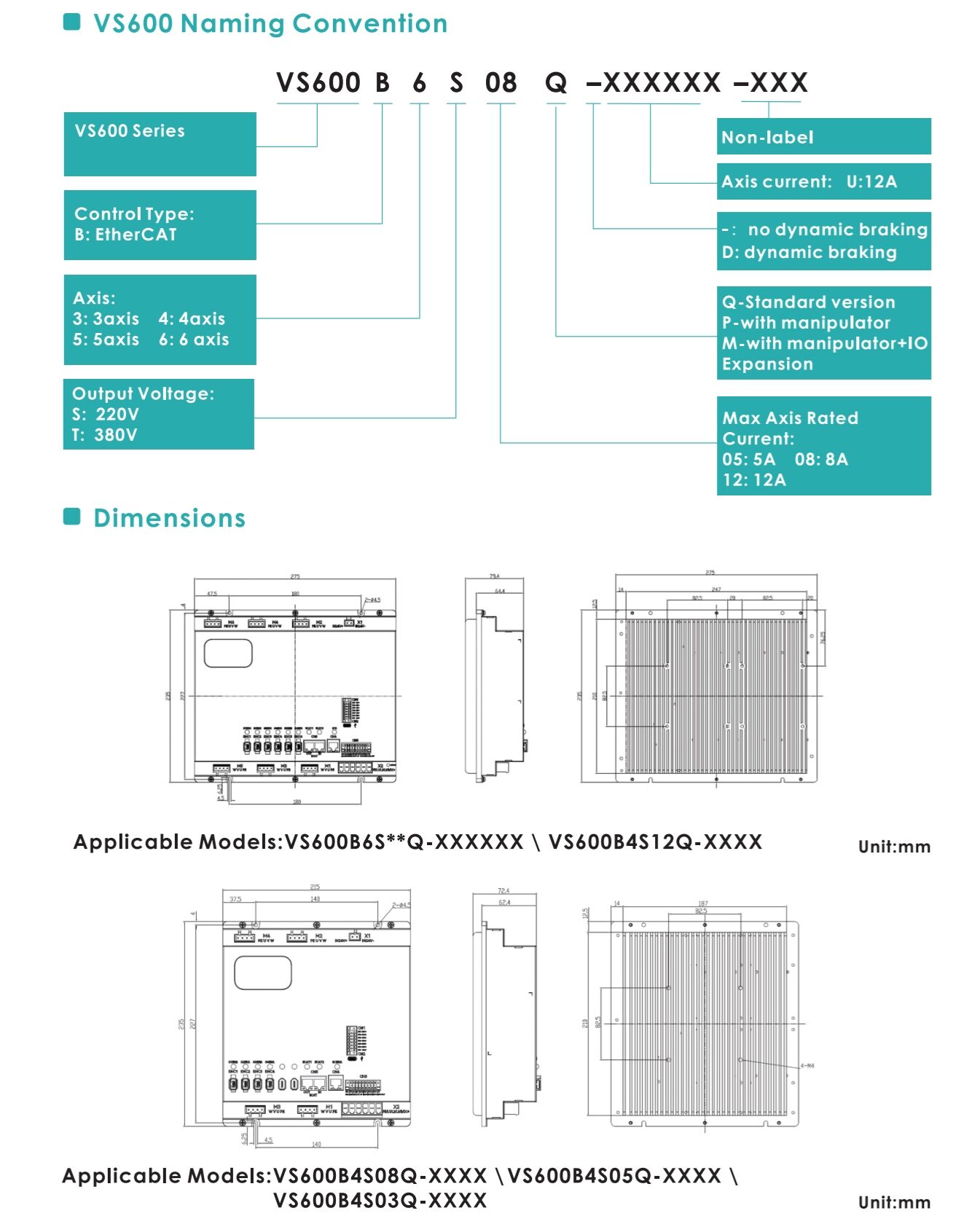

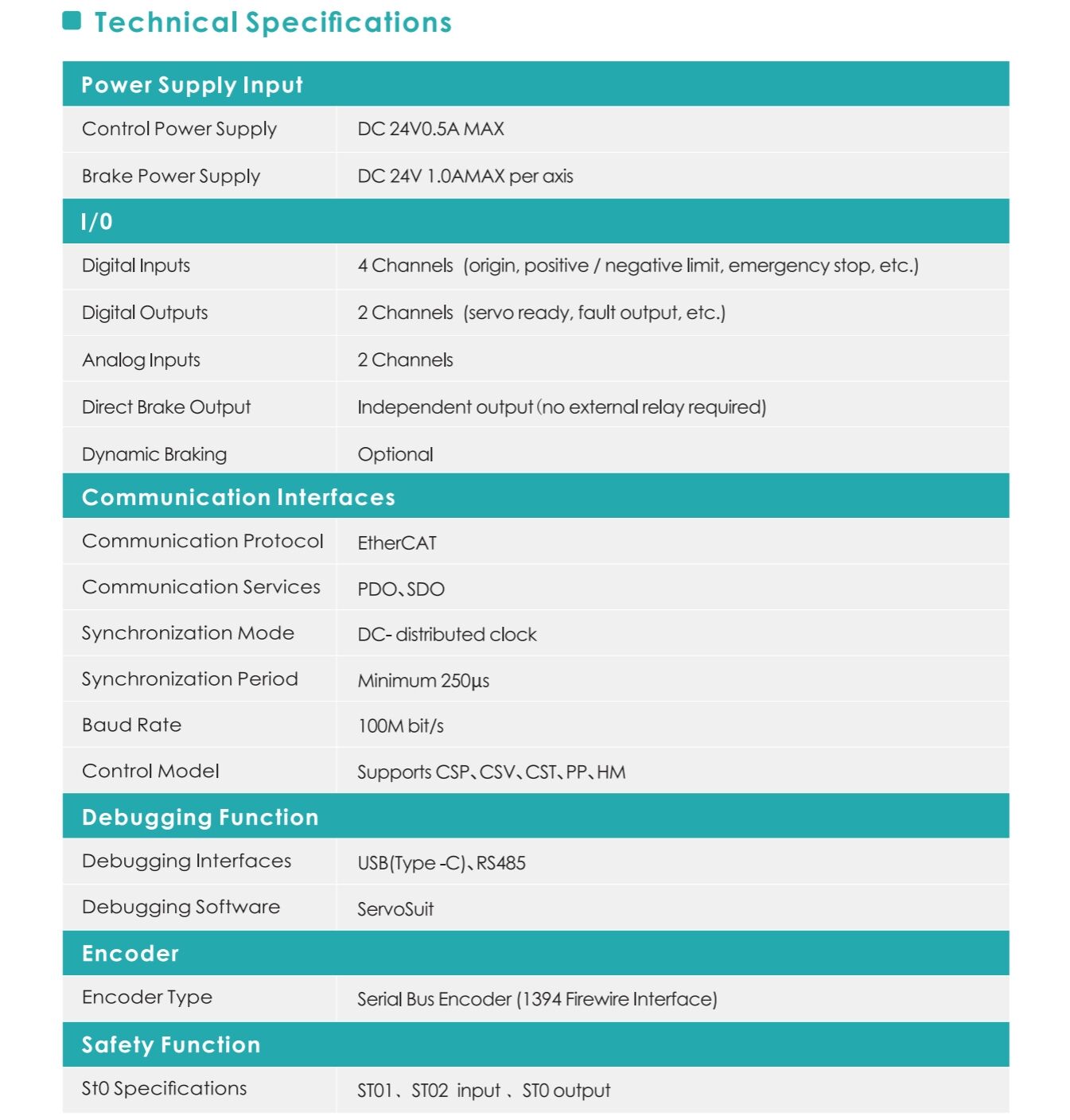

Product Details Description

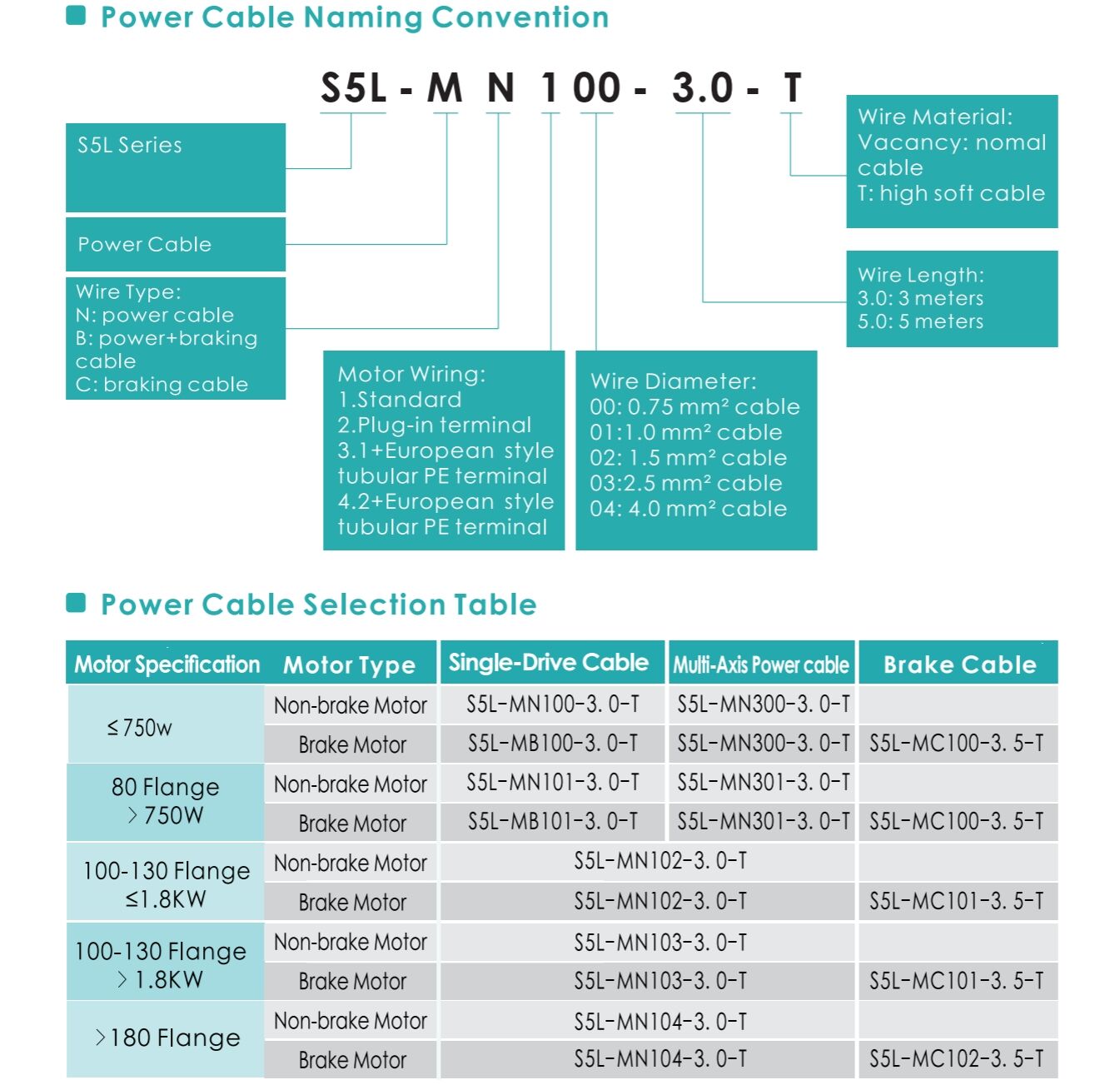

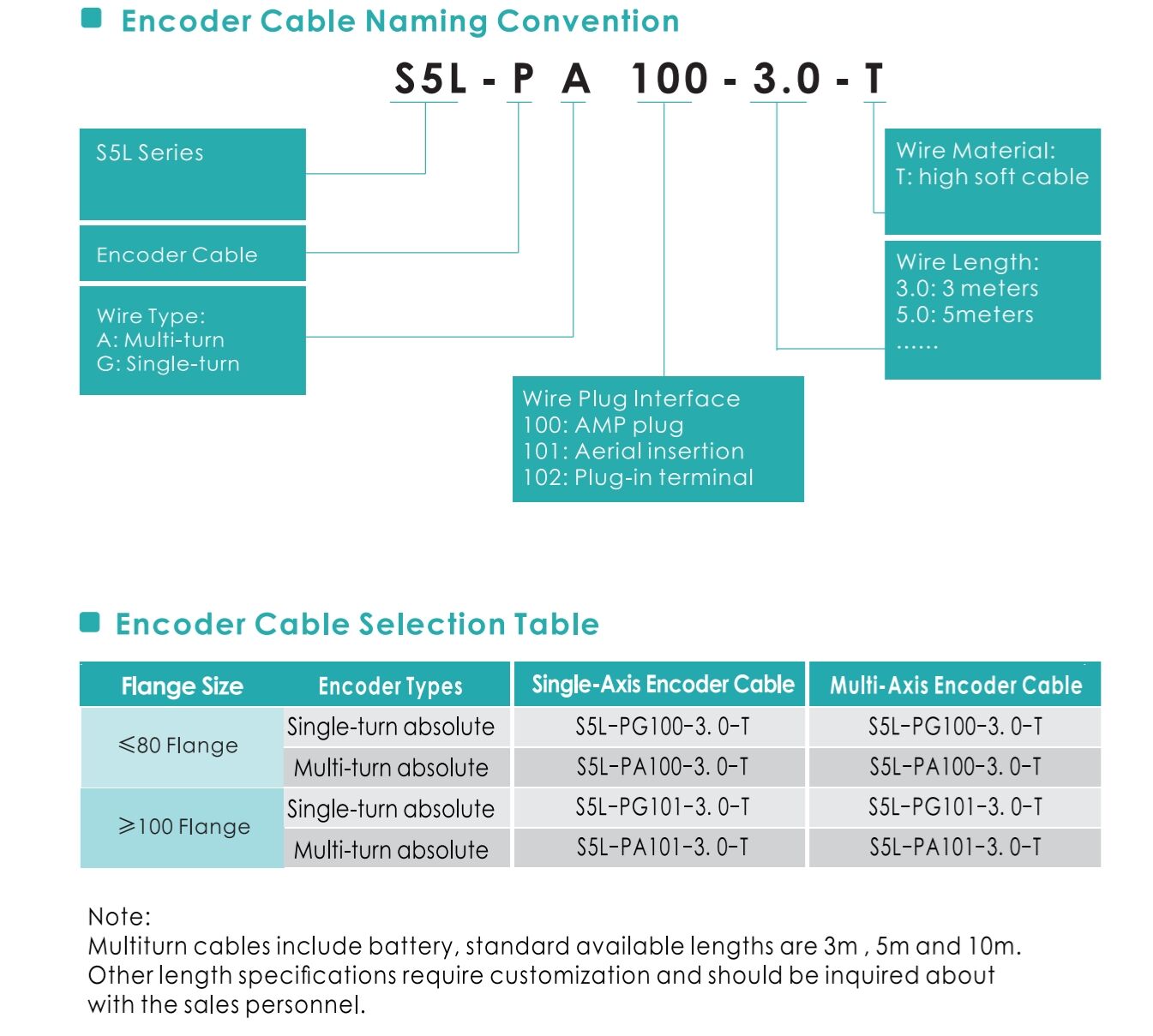

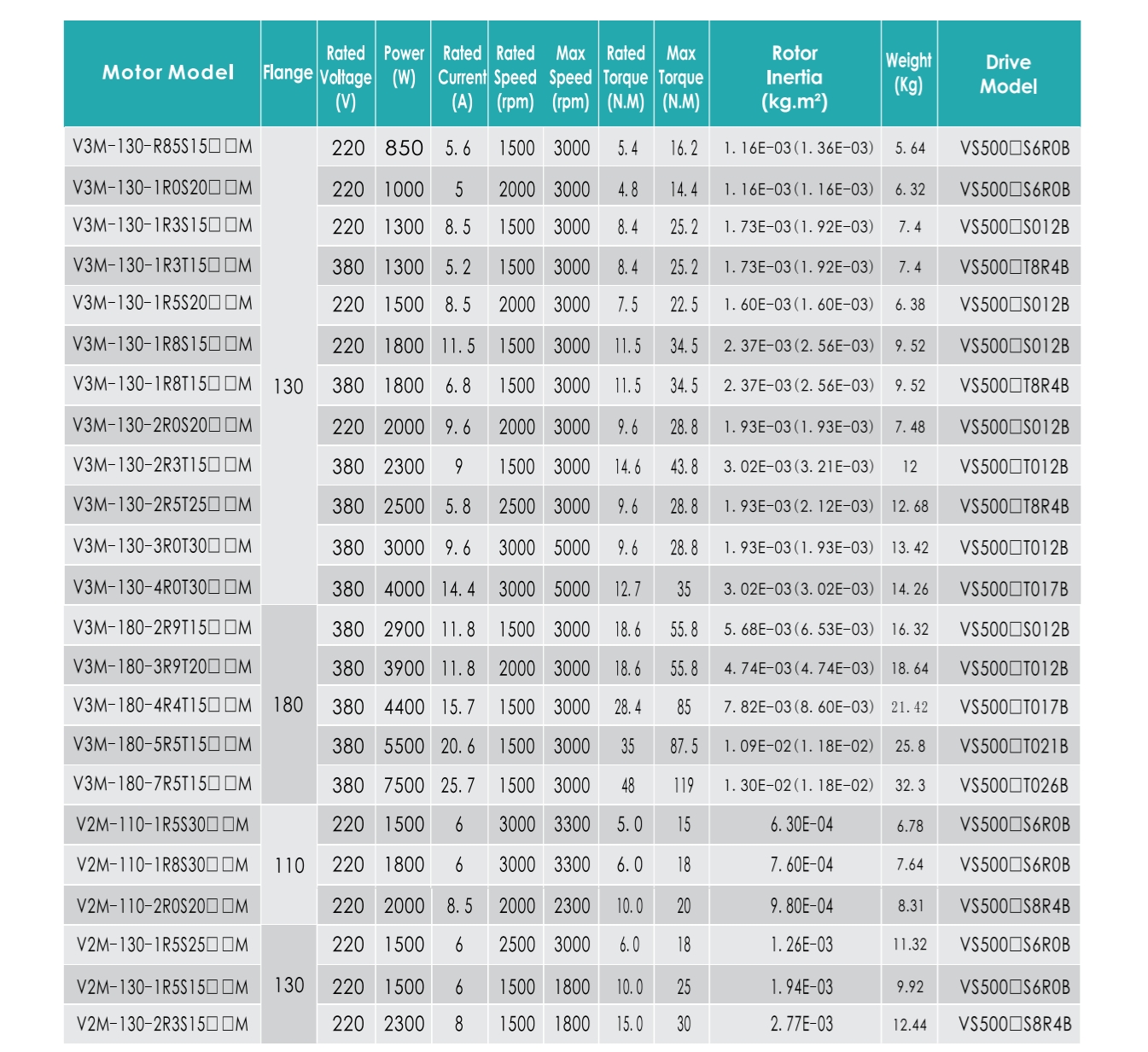

Cable selection

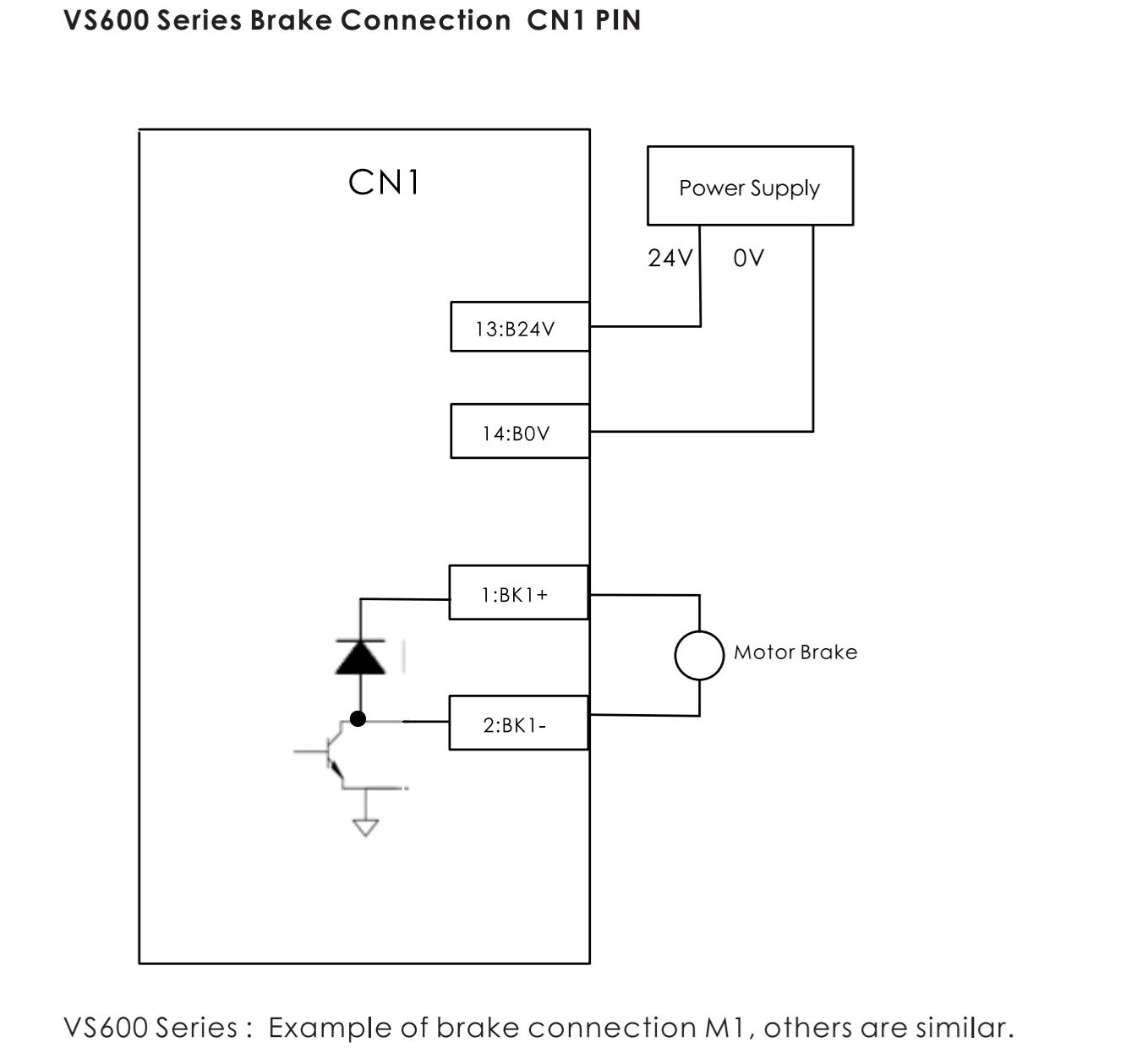

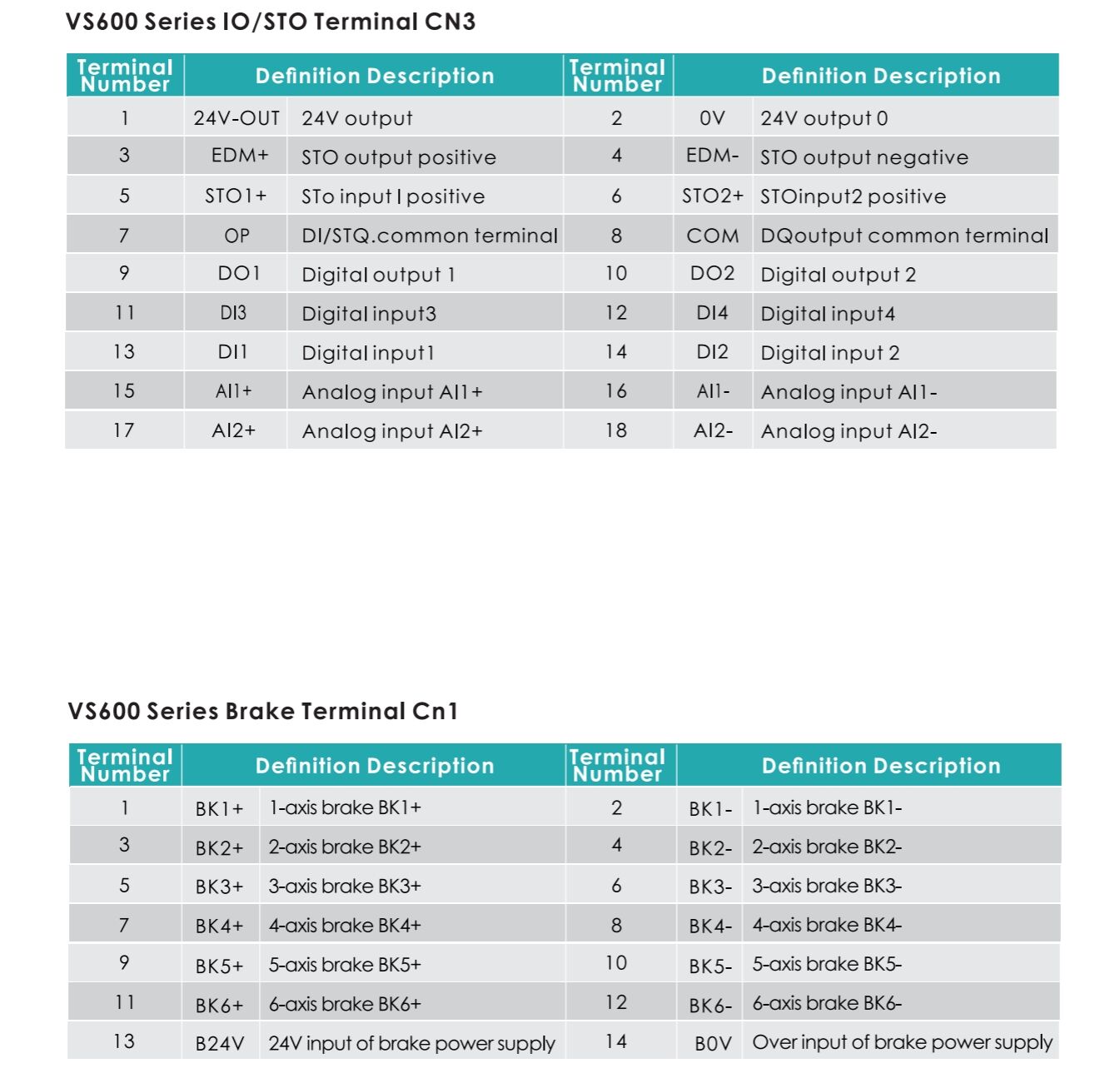

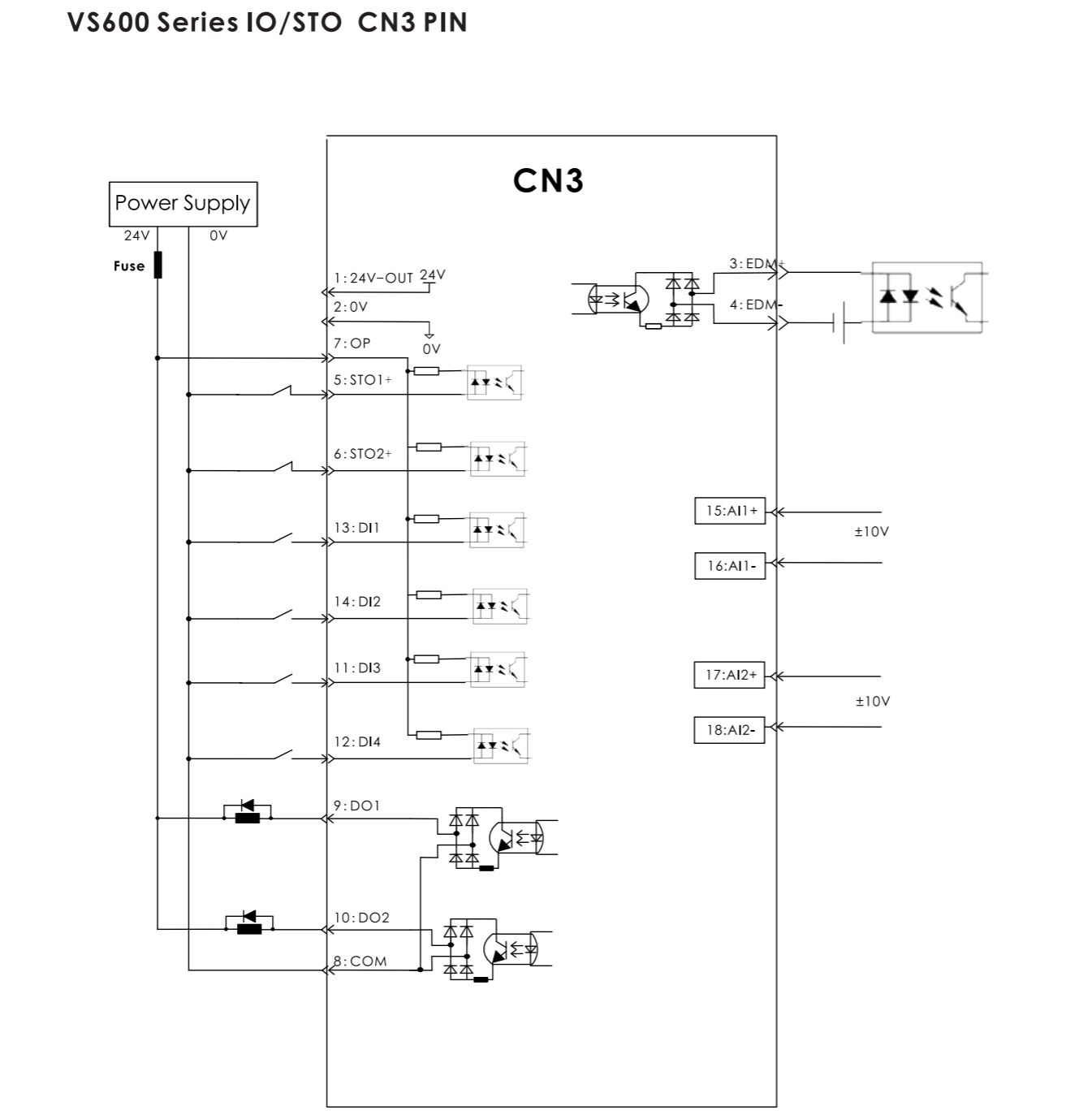

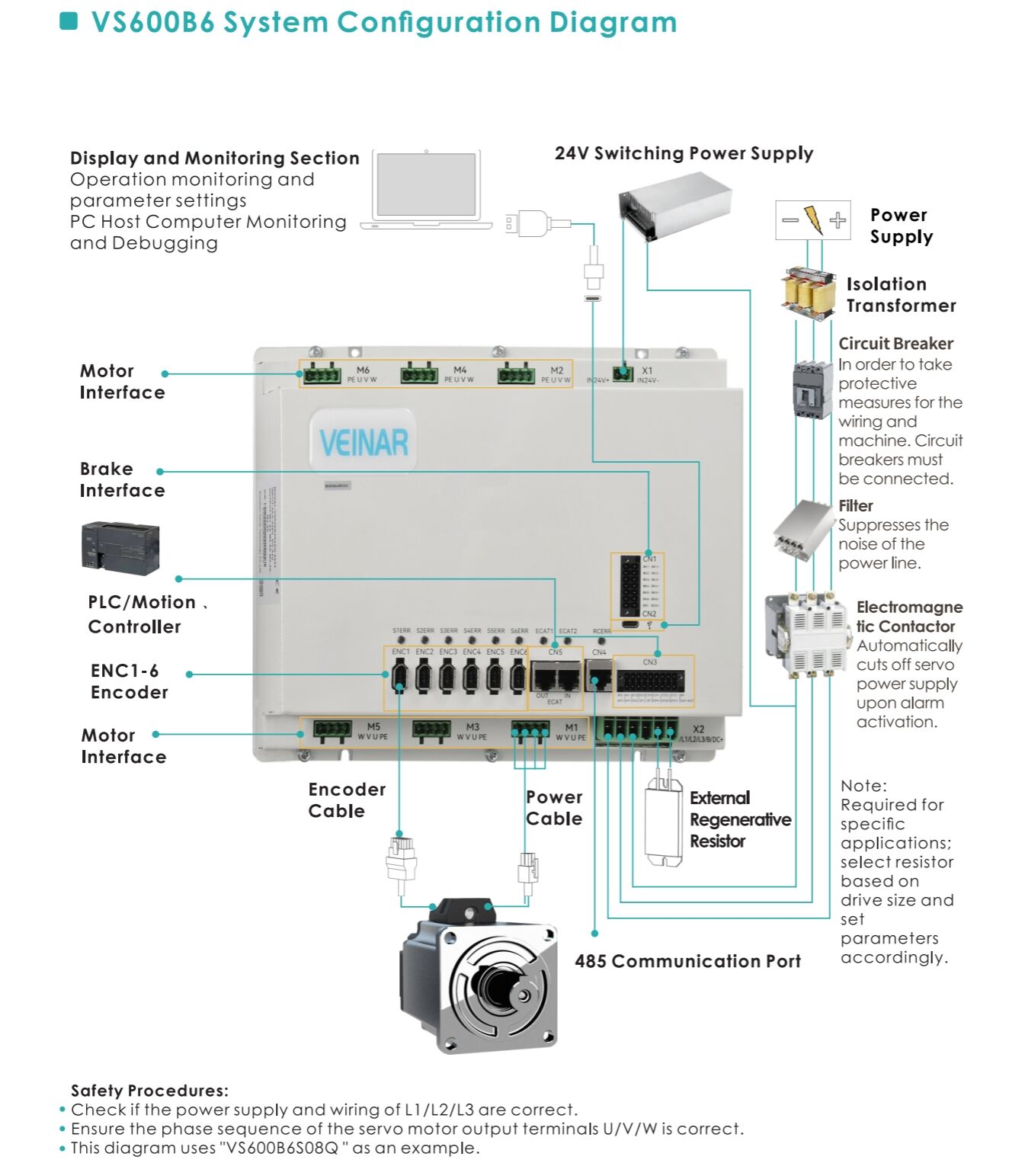

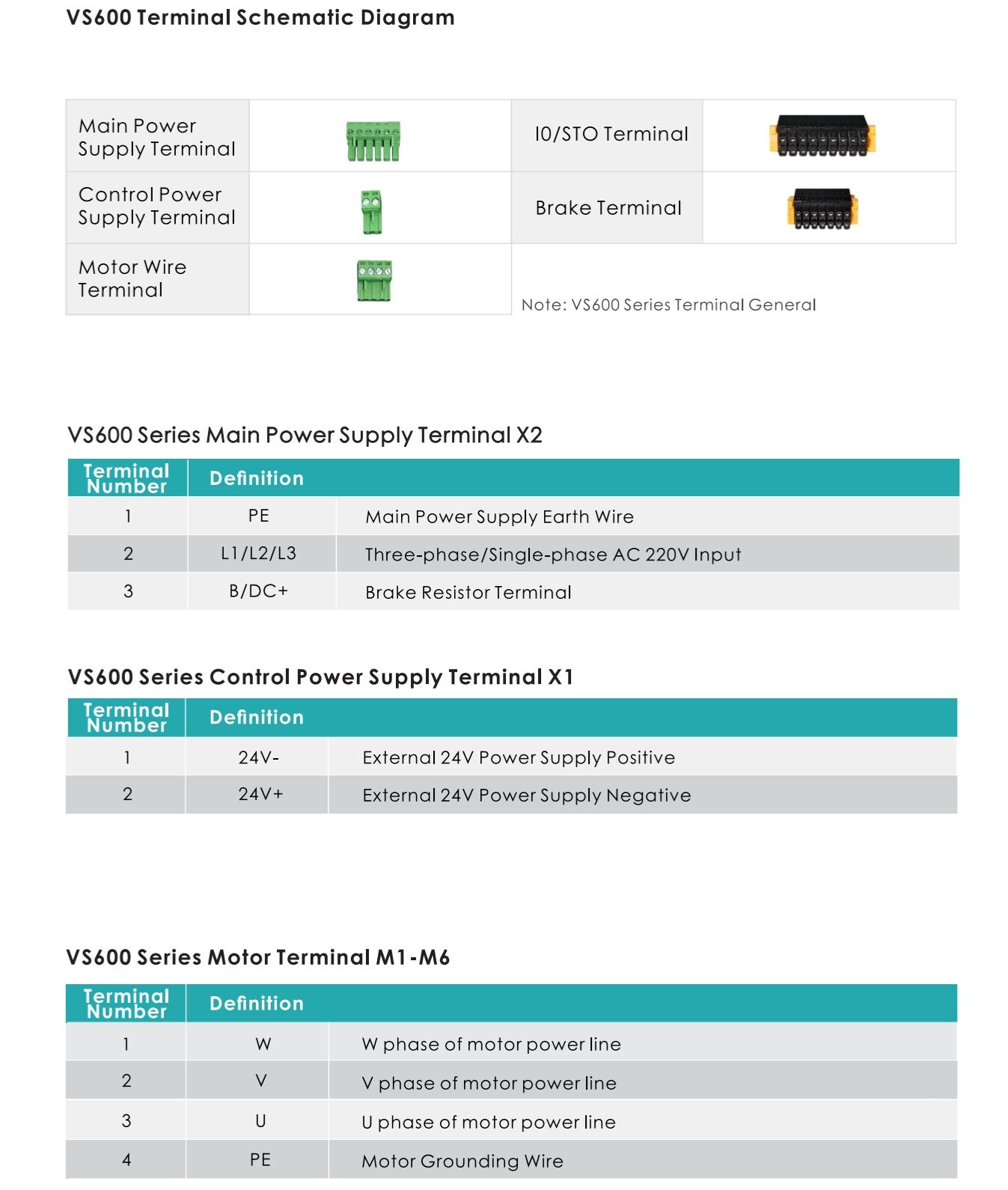

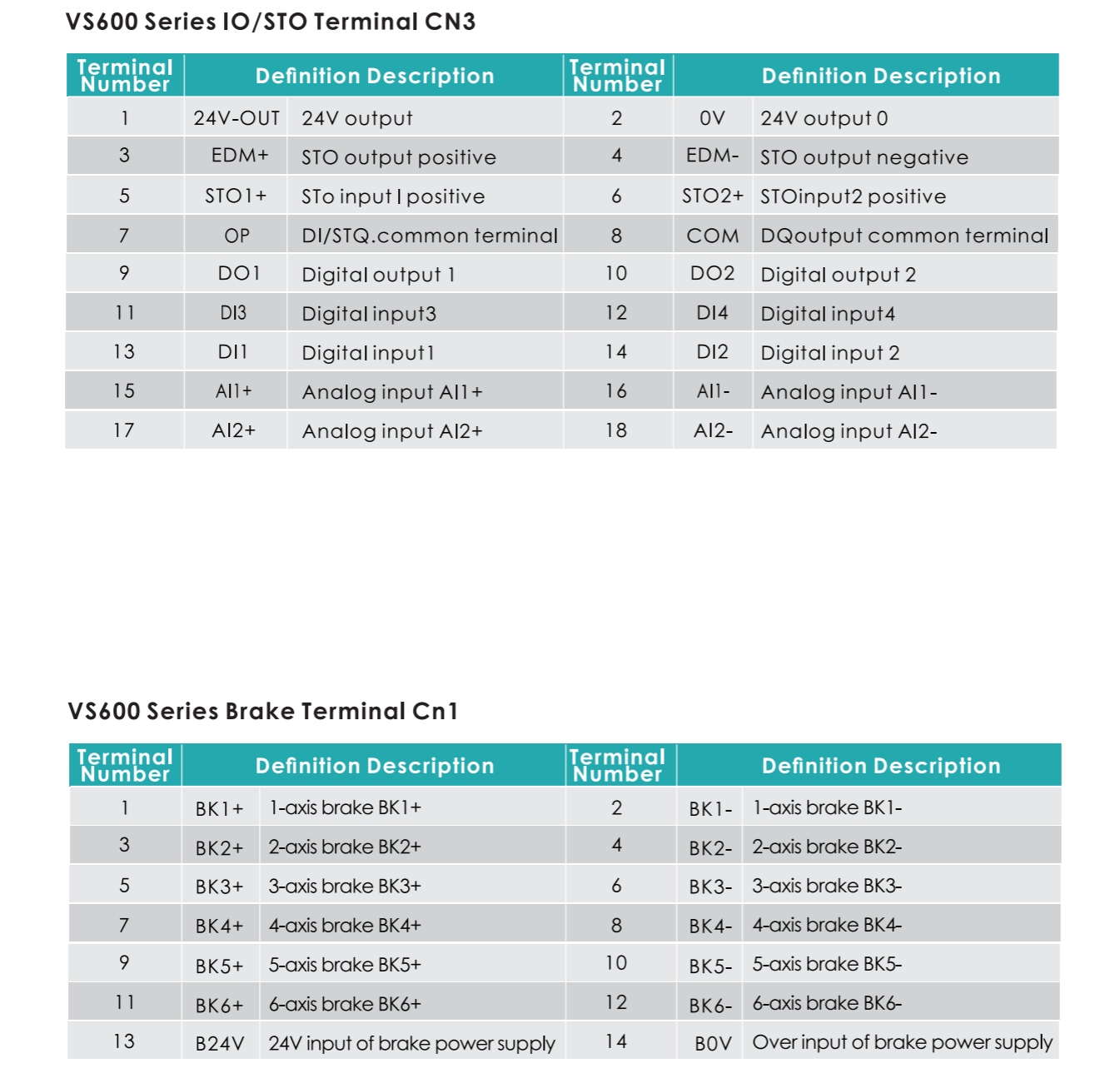

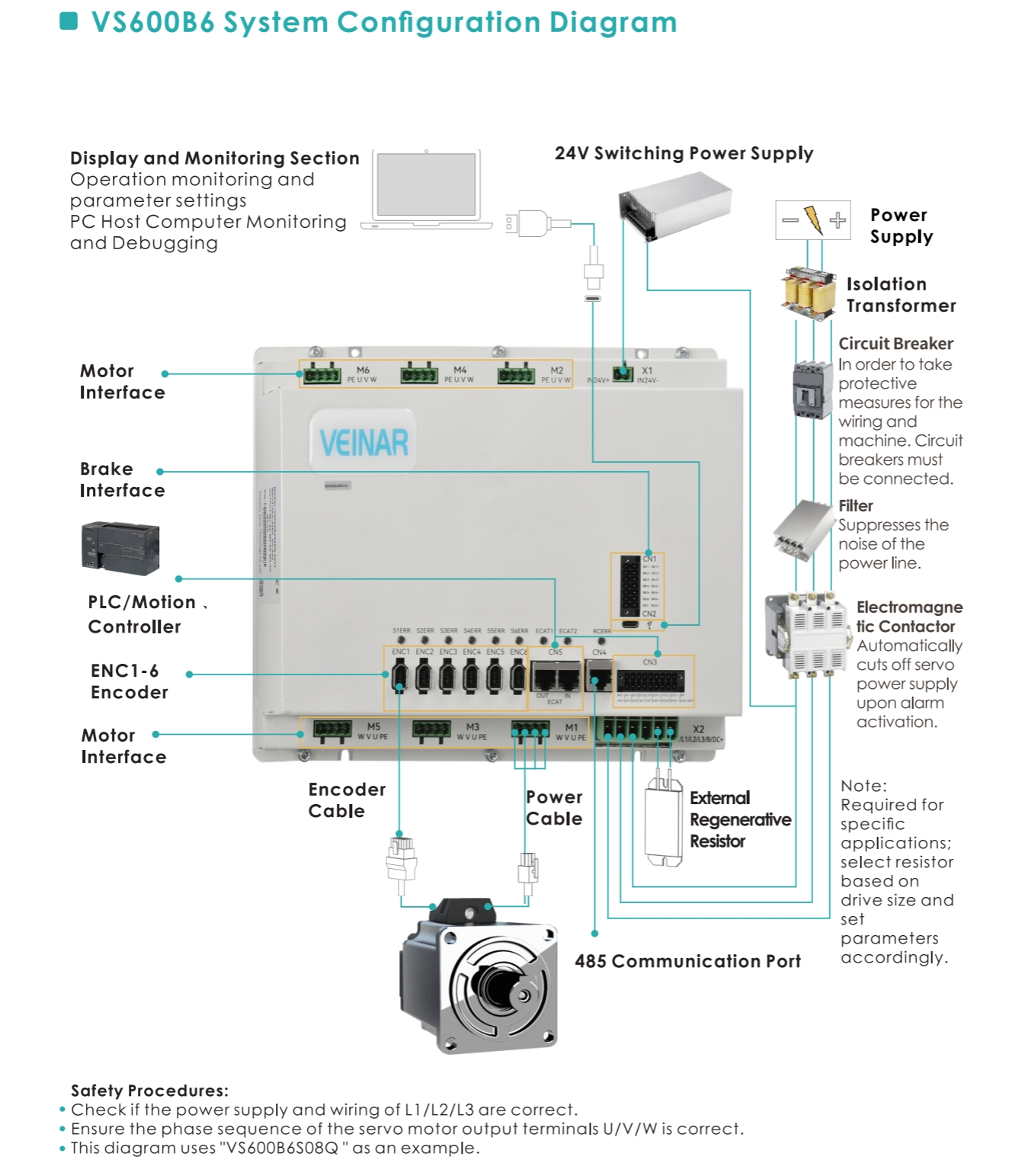

VS600 Terminal Wiring Diagram
Cable selection
