Linear Motors Assisting FDM Printing: Balancing Large-Size and High Precision
Introduction to Linear Motor Actuators in FDM Printing
Fused Deposition Modeling (FDM) has become a cornerstone technology in 3D printing, widely adopted in industries ranging from aerospace to medical devices and electronic manufacturing. However, traditional FDM printing faces inherent challenges: achieving high precision while scaling up to large-size models, and reconciling speed with stability. This is where linear motor actuators step in as a transformative solution. As a core component of advanced servo drive systems, linear motor actuators have redefined the capabilities of FDM printing by addressing the efficiency and precision bottlenecks that have long plagued traditional ball screw mechanisms.
Guangdong Highsense Information Technology Co., Ltd., with over 20 years of experience in motion control and a R&D team of top experts from China and Germany, has developed high-performance linear motor servo drive solutions tailored to such industrial needs. Their linear motor actuators, integrated into servo systems supporting Modbus, EtherCAT, and Profinet protocols, are designed to deliver micron-level precision, making them ideal for elevating FDM printing to new heights of reliability and performance.
Core Advantages of Linear Motor Actuators in FDM Printing
Micron-Level Positioning Precision for Superior Print Quality
The primary demand for FDM printing, whether in industrial parts production or medical device manufacturing, is consistent precision. Highsense’s linear motor servo drive system achieves ±1 μm-level positioning accuracy, a critical feature that ensures the print head moves with unparalleled precision along the X and Y axes. This accuracy translates to precise layer-by-layer deposition of filament materials, significantly improving the dimensional accuracy and surface quality of printed parts.
Complementing this precision is the 1000-point precision compensation technology integrated into Highsense’s servo drives. This technology dynamically adjusts for any potential deviations during the printing process, eliminating errors caused by mechanical wear or environmental factors. Additionally, the vibration suppression capability of the linear motor actuator minimizes fluctuations in the print head’s movement, preventing layer misalignment and ensuring smooth, uniform filament deposition—key to producing parts that meet strict industrial standards.
Modular Design Enabling Large-Size Stable Printing
Large-size FDM printing, such as in aerospace component prototyping or automotive part manufacturing, requires both extended stroke capabilities and stable motion. Highsense’s linear motor actuators feature a modular structure that allows flexible stroke expansion, adapting to the varying size requirements of different printing projects without compromising performance. Unlike traditional dual-Z-axis screws that often suffer from swing and vibration issues when scaled up, linear motor actuators eliminate these problems entirely.
When paired with a reinforced structure, the linear motor actuator enables stable printing of large-size models. The high-speed motion capability of 1-2 m/s further enhances efficiency, reducing printing time by over 45% compared to traditional systems. This combination of extended stroke, high speed, and vibration-free operation makes linear motor actuators the preferred choice for large-format FDM printing, where both size and precision are non-negotiable.
Maintenance-Free and Versatile Application Scenarios
Traditional ball screw systems require regular lubrication to maintain performance, which not only adds to maintenance costs but also poses a risk of material contamination—especially critical in food-grade or medical device applications. Highsense’s linear motor actuators eliminate the need for lubricants, ensuring a clean printing environment and avoiding filament contamination.
This maintenance-free design, coupled with compatibility with multiple types of encoders and industrial communication protocols (Modbus, EtherCAT, Profinet), makes linear motor actuators highly versatile. They seamlessly adapt to both food-grade application scenarios (such as custom food molds) and industrial settings (including semiconductor equipment and 3D printing of industrial parts). The robust construction of Highsense’s linear motor servo drives, validated through strict quality certification and aging tests, guarantees long-term stability and reliability in diverse operating conditions.
Highsense’s Linear Motor Servo Drive Solutions: Tailored for FDM Printing
Product Portfolio and Technical Specifications
Highsense offers a comprehensive range of linear motor servo drive products that cater to different FDM printing needs. Their product line includes 220V single-phase and 380V three-phase linear servo drives, with power ratings ranging from 750W to 2KW. For example, the 220V 4.5A single-phase linear motor servo driver is ideal for small to medium-sized FDM printers, while the 380V 2KW industrial servo system suits large-format, high-power printing applications.

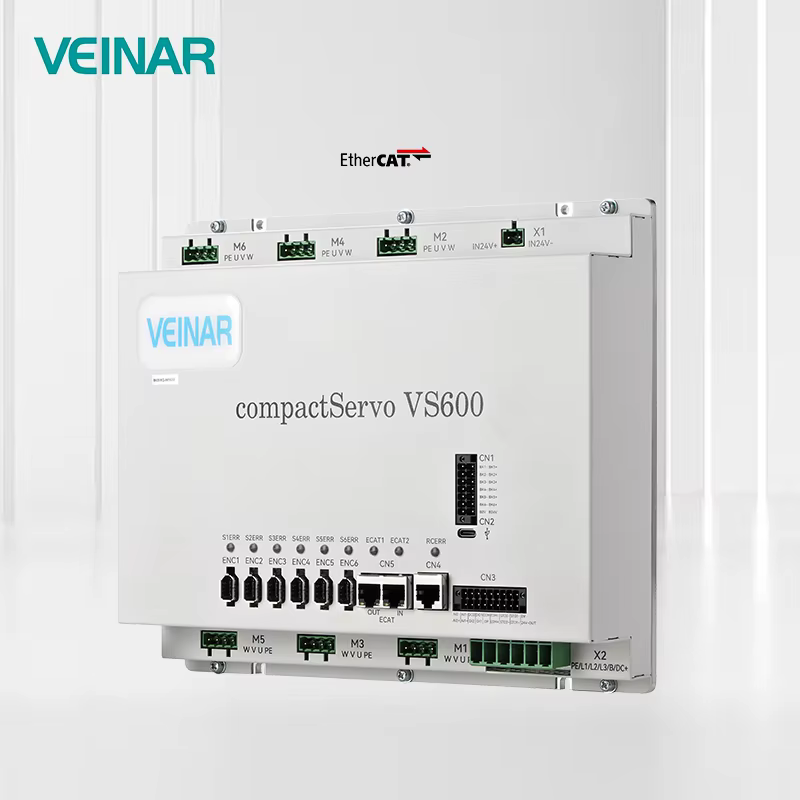

All linear motor actuators under Highsense’s VEINAR brand are designed with compact installation in mind, saving valuable space in printer setups. The multi-axis servo drive options, such as the 4-axis 1500W/Axis smart robotics servo drive, support synchronous operation of multiple linear motors, enabling complex motion control for advanced FDM printing processes like gantry synchronization and two-dimensional PSO (Position Synchronous Output).
R&D Strength and Quality Assurance
Highsense’s linear motor actuators are backed by a world-class R&D team with deep expertise in motion control. The company’s 20+ years of industry experience, combined with Sino-German technical collaboration, ensures that each product integrates cutting-edge technology and rigorous quality standards. Every linear servo drive undergoes strict testing, including IQC (Incoming Quality Control), burn-in testing, and aging tests in specialized workshops, to guarantee performance exceeding industry requirements.
The professional technical team also provides customized solutions tailored to specific customer needs, whether it’s adjusting stroke lengths, optimizing communication protocols, or integrating with PLC control systems. This flexibility makes Highsense’s linear motor actuators adaptable to a wide range of FDM printing equipment, from desktop printers to industrial-grade production lines.
Global Application and Customer Support
Highsense’s linear motor servo drive solutions have been exported to over 65 countries and regions, serving more than 300,000 cooperative customers across industries. In the 3D printing sector, their products have been widely adopted in FDM printers for applications such as semiconductor component manufacturing, medical device prototyping, and automotive part production.
To ensure customer success, Highsense offers one-stop services including technical consulting, assembling and commissioning, sample testing, and packaging and shipment. This end-to-end support ensures that customers can seamlessly integrate linear motor actuators into their FDM printing systems and maximize performance.
Practical Application Cases of Linear Motor Actuators in FDM Printing
Industrial Part Production
A leading automotive parts manufacturer adopted Highsense’s 380V 2KW linear motor servo drive system for large-size FDM printing of car body prototypes. The linear motor actuator’s ±1 μm precision ensured the prototype’s dimensional accuracy met automotive industry standards, while the 1-2 m/s high-speed motion reduced printing time by 50% compared to the previous ball screw system. The vibration suppression feature eliminated surface defects, and the lubricant-free design prevented contamination of the engineering plastic filament.
Medical Device Prototyping
A medical equipment company used Highsense’s 220V 1.5KW linear motor actuator in their FDM printer to produce custom surgical instrument prototypes. The micron-level precision guaranteed the prototypes’ compatibility with human anatomy, and the clean, maintenance-free operation complied with medical industry hygiene requirements. The modular design allowed the company to adjust the printing stroke for different instrument sizes, enhancing production flexibility.
Food-Grade Mold Printing
A food processing enterprise integrated Highsense’s linear motor servo drive system into their FDM printer for manufacturing custom chocolate molds. The lubricant-free linear motor actuator avoided any risk of food contamination, meeting food-grade safety standards. The high-speed and high-precision motion ensured the molds’ intricate details were accurately reproduced, and the stable operation enabled consistent production of large batches of molds.
Conclusion
Linear motor actuators have emerged as a game-changing technology for FDM printing, successfully balancing large-size printing capabilities with high precision. Highsense’s linear motor servo drive solutions, leveraging 20+ years of motion control expertise and Sino-German technical collaboration, deliver micron-level precision, modular flexibility, and maintenance-free operation—addressing the core challenges of traditional FDM printing.
From industrial part production to medical device prototyping and food-grade applications, Highsense’s linear motor actuators provide reliable, efficient, and versatile solutions that cater to diverse industry needs. As FDM printing continues to evolve, linear motor actuators will remain at the forefront, driving innovation and enabling new possibilities in precision manufacturing.
