Web-Fed Printing Presses: PROFINET Drives Eliminate Color Registration Errors

Web-fed printing presses are the backbone of high-volume packaging and commercial printing, where speed, precision, and consistency directly impact production efficiency and product quality. Color registration—aligning multiple ink colors perfectly on the moving web—has long been a critical challenge for printers. Even the smallest misalignment can lead to blurry prints, wasted materials, and missed deadlines. However, the introduction of custom profinet servo with safety features has transformed the game. By integrating PROFINET’s high-speed communication, precise motion control, and tailored safety functions, these servos eliminate color registration errors, boost speed, and reduce waste. Let’s explore how this advanced technology revolutionizes web-fed printing operations.

Color registration errors in web-fed presses often stem from inconsistent synchronization between printing units. Each color station must operate in perfect harmony with the others, even as the web moves at high speeds. Custom profinet servo with safety features addresses this with IRT (Isochronous Real-Time) synchronization, a core advantage of PROFINET that ensures ultra-precise coordination across all axes.

IRT synchronization limits phase errors between printing units to less than 0.1 mm, a level of precision that translates to color registration accuracy of ±0.05 mm. This means each ink color lands exactly where it should, creating sharp, crisp prints even for intricate designs or fine text. Unlike traditional servo systems that struggle with latency or drift, the custom profinet servo leverages PROFINET’s 100 Mbps communication speed to maintain consistent synchronization, even at maximum production rates. For web-fed presses running at 150 m/min—common in packaging print production—this level of precision is non-negotiable, as even minor delays would quickly snowball into visible registration errors.

The servo’s compatibility with multiple communication protocols, including PROFINET, EtherCAT, and Modbus, further enhances synchronization flexibility. It seamlessly integrates with existing press control systems, ensuring smooth data flow between the servo drives, PLC, and human-machine interface (HMI). This integration eliminates communication bottlenecks that could disrupt alignment, providing a stable foundation for error-free color registration.

Web tension and speed mismatches are another major cause of color registration issues and material waste. As the web moves through the press, variations in tension can stretch or shrink the material, throwing off color alignment. Custom profinet servo with safety features solves this with electronic gearing, a function that dynamically matches print speed to web tension in real time.

Electronic gearing adjusts the servo motor’s speed and torque automatically, ensuring the web remains taut but not overstretched. This dynamic control eliminates the “bounce” or “slip” that plagues less advanced systems, keeping the web moving at a consistent rate across all printing units. The result is a dramatic reduction in paper waste—by up to 20%—as fewer misaligned prints end up in the scrap bin. For high-volume printers, this translates to significant cost savings and a smaller environmental footprint.

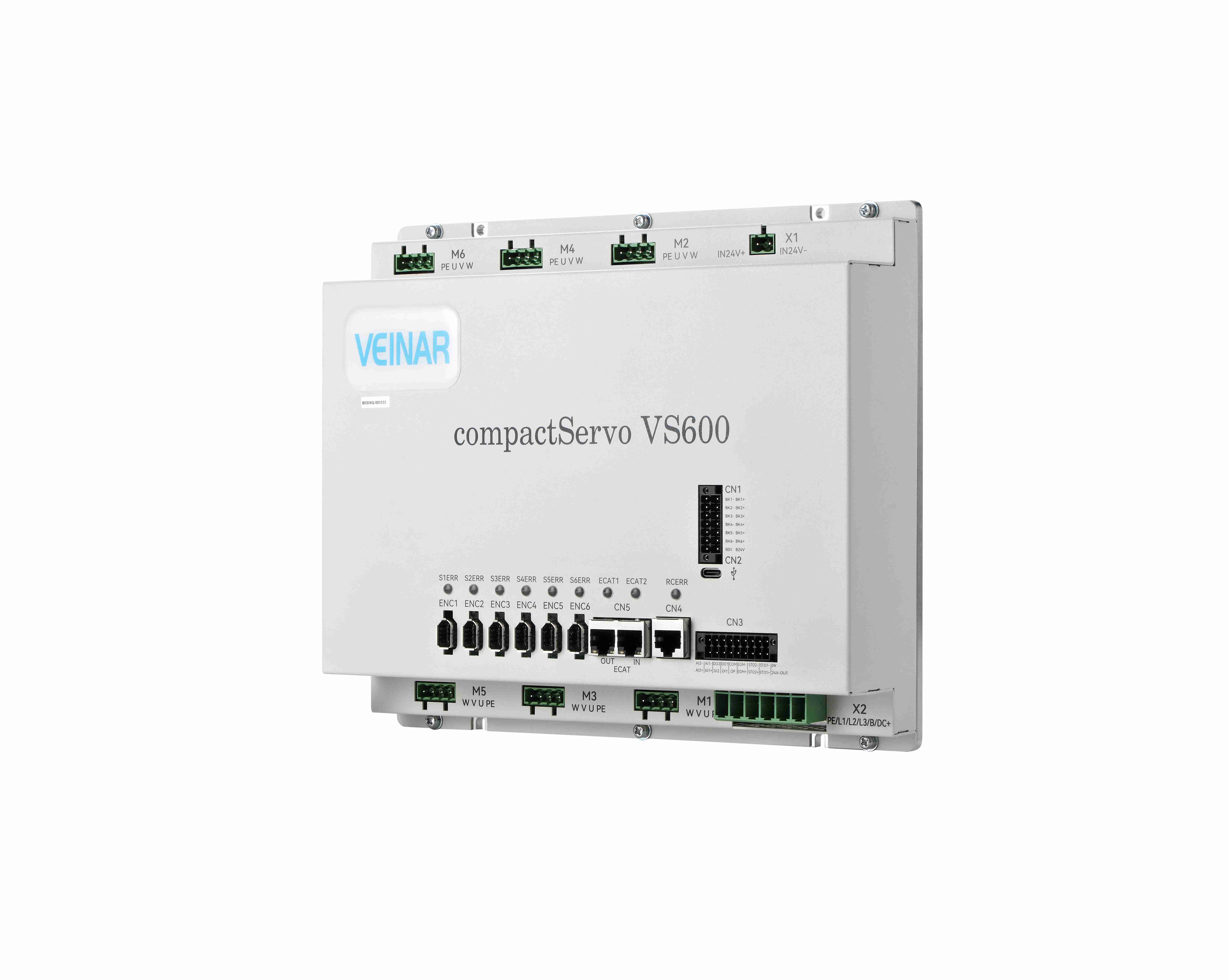

The servo’s 1500W power output and support for multi-axis control (up to 6 servo motors simultaneously) make it ideal for complex web-fed presses with multiple color stations. Each axis can be precisely tuned to the specific requirements of its printing unit, while the central control system maintains overall synchronization. This balance of individual control and system-wide harmony ensures that speed and tension remain optimized, even when switching between different substrates or print jobs.

In web-fed printing, unplanned downtime is costly—every minute the press is idle translates to lost production. Custom profinet servo with safety features includes a Web Server function that enables remote diagnostics, a game-changer for troubleshooting and maintenance. Instead of waiting for technicians to be on-site, operators can access real-time data, error logs, and performance metrics from anywhere with an internet connection.

This remote accessibility cuts troubleshooting time by 50%, allowing teams to identify and resolve issues—such as minor synchronization drifts or sensor malfunctions—before they escalate into major problems. For example, if a color station shows a slight registration shift, operators can adjust the servo parameters remotely, without stopping the press. This proactive maintenance keeps production running smoothly and reduces the risk of costly downtime.

The servo’s 100 Mbps PROFINET communication speed is critical to this efficiency. It ensures that data flows seamlessly between the servo drives and the press control system, providing real-time feedback on speed, tension, and registration accuracy. This high-speed communication also supports the press’s maximum operating speed of 150 m/min, ensuring that precision is not sacrificed for speed. Whether printing flexible packaging, labels, or catalogs, the servo keeps up with the press’s demands, delivering consistent results even during long production runs.

Web-fed printing presses operate in dynamic, high-speed environments, so safety is paramount. Custom profinet servo with safety features is designed with this in mind, integrating multiple safety functions to protect operators, equipment, and production. The servo includes built-in error detection (such as S1ERR to S6ERR indicators for multi-axis systems) that triggers immediate safeguards if a fault is detected—such as stopping the affected axis or reducing speed to a safe level. This prevents equipment damage and minimizes the risk of accidents, ensuring compliance with industrial safety standards.

Beyond safety, customization is a key strength of these servos. Manufacturers offer OEM/ODM services, allowing printers to tailor the servo to their specific press configurations and printing needs. Whether adjusting power output (such as the 220V 1500W model), adding specialized communication protocols, or modifying safety features, the servo can be adapted to fit virtually any web-fed press. This flexibility is particularly valuable for printers handling diverse jobs—from thin films to heavy cardstock—each requiring unique motion control parameters.

The servo’s compact design and flat installation also contribute to its practicality. It saves space in the press control cabinet, simplifying wiring and reducing installation time. Combined with a reliable 18-month warranty and responsive technical support, this customization ensures that the servo not only solves color registration issues but also integrates seamlessly into existing operations, minimizing disruption and maximizing return on investment.
