Engine Assembly Line: PROFINET Drives Enable Flexible Tightening Control

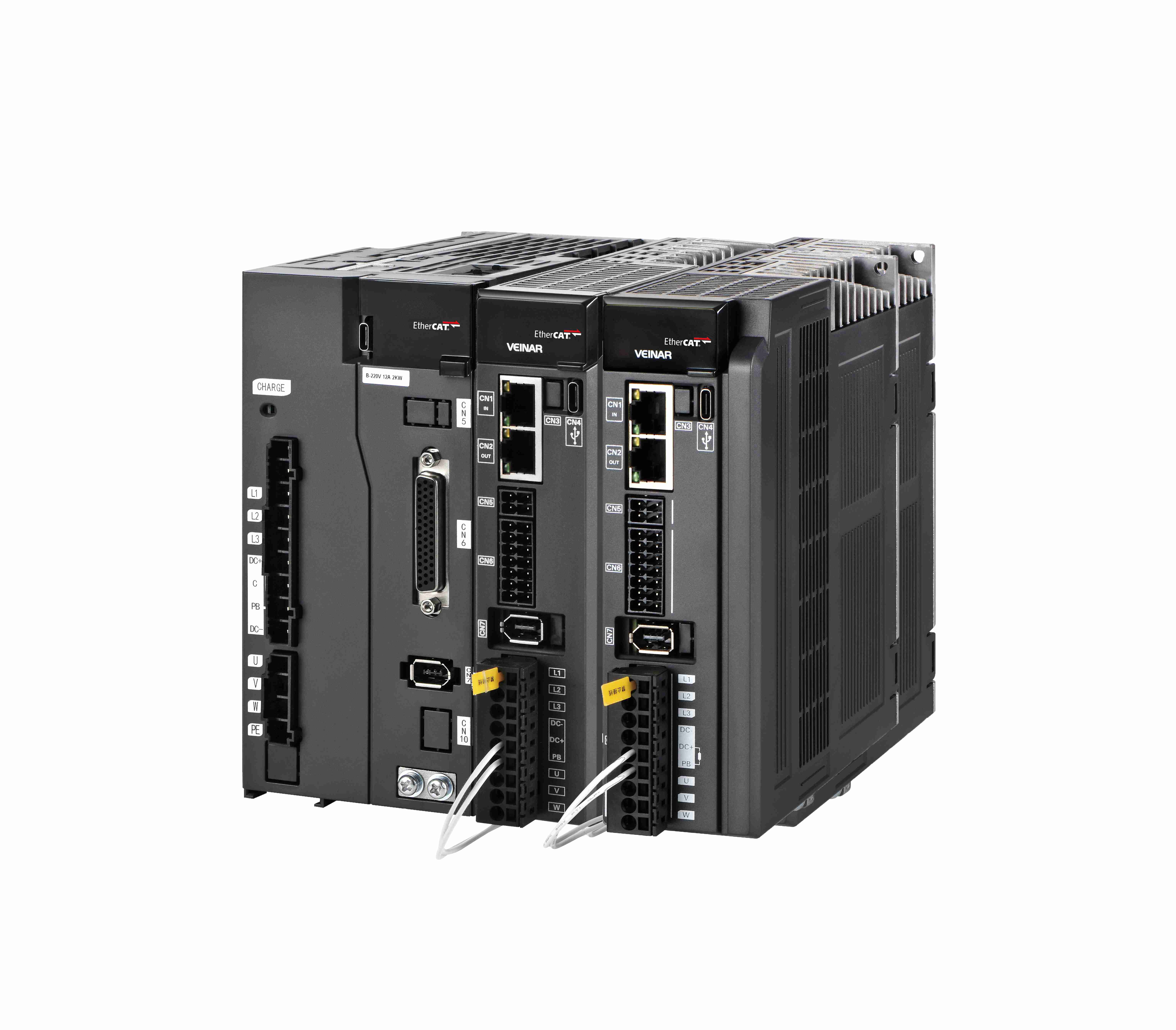

Automotive engines are the core components of vehicles, requiring precise assembly of numerous parts to ensure performance and reliability. Among all assembly processes, bolt tightening stands out as a decisive step—its quality directly impacts the engine’s operational safety, durability, and efficiency. Traditional tightening methods often face challenges such as inconsistent torque application, poor synchronization between stations, and limited traceability of process data. These issues can lead to bolt looseness, component damage, or even serious safety hazards during vehicle operation.

A common quality risk in engine assembly is the misinstallation of bolts with the same thread diameter but different lengths. Traditional tightening tools can only monitor final torque values, which may appear normal even with incorrect bolt lengths, leading to insufficient clamping force and potential safety hazards.

PROFINET servo drives solve this problem by integrating torque-angle monitoring programs. During the pre-tightening stage, the drive monitors the angle range where torque remains low. For example, M6×16 and M6×25 bolts have distinct angle ranges (5760° and 9000° respectively) where torque starts to rise. The system automatically identifies mismatches between the actual angle and the preset value, triggering an alarm to prevent misinstallation. This function has effectively reduced bolt misinstallation rates to near zero in practical applications.

Foreign objects (such as aluminum shavings) in bolt holes or defects in bolts/threads can cause abnormal torque increases during tightening, leading to thread damage or incomplete clamping. PROFINET servo drives detect these issues by comparing real-time torque-angle curves with standard profiles.

When an abnormal torque surge is detected in the pre-tightening stage, the system immediately stops the tightening process and alerts operators. This proactive detection prevents further damage to components, reducing the rate of part scrapping and rework. In the assembly of cylinder adapter bolts, for instance, this function has successfully avoided thread damage that could lead to costly production line shutdowns during subsequent transmission assembly.

By addressing key quality risks and optimizing the tightening process, PROFINET servo drives have raised the tightening qualification rate from 98% to 99.9%. This improvement is particularly valuable in high-volume engine production, where even a 1% increase in qualification rate translates to substantial cost savings and higher customer satisfaction.

The consistent clamping force achieved through precise synchronization and data monitoring ensures that each engine meets the stringent performance requirements of modern powertrains. Whether it’s improving fuel efficiency, reducing emissions, or enhancing durability, the reliable tightening control provided by PROFINET servo drives lays a solid foundation for engine quality.

In the competitive automotive manufacturing industry, precision, efficiency, and reliability are the keys to success. PROFINET servo drives have revolutionized engine assembly line bolt tightening control by combining ultra-precise synchronization, full data traceability, high reliability, and flexible compatibility. They not only solve traditional quality and efficiency issues but also enable manufacturers to move toward intelligent production.

As automotive technology advances, the requirements for engine assembly will continue to become more stringent. PROFINET servo drives, with their ongoing technological upgrades and expanding application scenarios, will remain at the forefront of intelligent tightening solutions. By adopting this advanced technology, manufacturers can enhance their core competitiveness, deliver higher-quality engines, and meet the evolving demands of the market.
